Plumbing swimming pool equipment is a vital step in building or renovating a pool. Proper plumbing ensures efficient water circulation, optimal filtration, and long-lasting equipment performance. This comprehensive guide will walk you through every aspect of pool plumbing, from understanding the system layout to step-by-step installation, troubleshooting, and maintenance. Rich visuals and detailed explanations will help clarify each stage, making this a must-read for anyone embarking on a pool project.
A swimming pool plumbing system is a network of pipes, valves, and fittings that circulates water between the pool and its equipment. The system includes several key components working in harmony to maintain clean, healthy, and swimmable water.
- Skimmer: Located on the pool's inner wall, the skimmer draws surface water into the plumbing system. It contains a basket that traps larger debris like leaves and insects to prevent clogging downstream. Some skimmers have a floating door called a *weir* that helps regulate water flow and debris collection.
- Main Drain: Positioned at the deepest part of the pool, the main drain pulls water from the bottom, improving overall circulation and preventing stagnation. Many pools have two main drains spaced apart to reduce suction force and enhance safety.
- Suction Lines: These PVC pipes connect the skimmer and main drain to the pump. They carry water under suction pressure generated by the pump.
- Pump: The heart of the pool circulation system, the pump creates suction to draw water through the suction lines and pushes it through the filter and other equipment. It is crucial that the pump never runs dry, as this can cause damage.
- Filter: Removes debris and microscopic contaminants from the water. Common types include sand, cartridge, and diatomaceous earth (DE) filters.
- Return Lines and Jets: After filtration and treatment, water is returned to the pool through multiple return jets, which help distribute chemicals evenly and maintain water clarity.
- Valves: Control water flow, allowing isolation of equipment or parts of the system for maintenance.

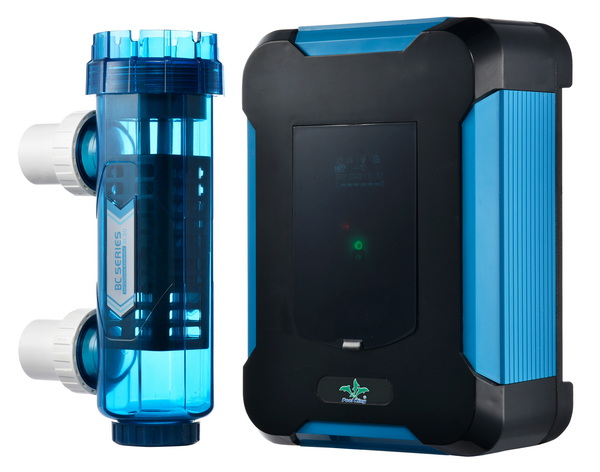

- Additional Equipment: Heaters, chlorinators, salt chlorine generators, and automation systems may be integrated into the plumbing for enhanced pool management.
Understanding how these components work together is essential for designing, installing, and maintaining an efficient pool plumbing system.
Before starting installation, familiarize yourself with the equipment involved:
| Equipment | Function |
|---|---|
| Pool Pump | Circulates water by creating suction and pushing it through the filter and return lines. |
| Filter | Cleans water by trapping debris and contaminants. |
| Heater | Optional; maintains comfortable water temperature. |
| Chlorinator/Salt System | Sanitizes water by adding chlorine or salt-generated chlorine. |
| Valves | Regulate and direct water flow. |
| PVC Pipes & Fittings | Durable pipes and connectors for water transport. |
| Unions & Couplings | Facilitate easy disassembly for maintenance. |
| Teflon Tape & PVC Cement | Ensure leak-proof joints. |
Choosing quality equipment and materials suited to your pool size and local climate is critical for system longevity and performance.
A detailed plumbing diagram is the blueprint for your system. It should include:
- Suction lines from skimmers and main drains.
- Return lines to strategically placed return jets.
- Locations of all equipment on the pad.
- Valves for flow control.
- Additional features such as waterfalls or cleaners.
- Centralize the equipment pad for efficient pipe runs.
- Ensure accessibility for maintenance and future upgrades.
- Provide adequate space and ventilation around equipment.
- Use 1.5-inch or 2-inch PVC pipes; larger diameters reduce friction and improve flow.
- Minimize the number of 90-degree elbows to reduce resistance.
- Group suction and return lines separately to maintain balanced water pressure.
- Maintain at least 6 inches of straight pipe before and after equipment to optimize flow.
- Always check local plumbing and electrical codes.
- Ensure proper grounding and bonding of equipment.
- Use check valves where needed to prevent backflow.
Proper planning prevents costly mistakes and ensures smooth operation.
- Dig trenches at least 2 feet deep to protect pipes from damage and freezing.
- Plan trench routes according to your plumbing diagram.
- Install two main drains spaced at least 3 feet apart at the pool's deepest point.
- Mount skimmers at the waterline, connecting their plumbing to the suction lines.
- Connect suction lines from main drains and skimmers to the pump inlet.
- Run return lines from the filter outlet to multiple return jets around the pool.
- Position the pump, filter, heater, and chlorinator on the equipment pad.
- Use unions to connect pipes to equipment for easy removal.
- Connect the pump outlet to the filter inlet, then to the heater and chlorinator, finally to return lines.
- Cut pipes squarely and deburr edges.
- Clean and prime pipe ends and fittings.
- Apply PVC cement liberally and join with a twisting motion.
- Use Teflon tape on threaded fittings without overtightening.
- Perform pressure testing before backfilling.
- Backfill carefully, avoiding pipe displacement or damage.
Following these steps ensures a durable, leak-free plumbing system.
- Arrange equipment with sufficient clearance for airflow and maintenance.
- Align pipe exits at uniform heights for a clean, professional look.
- Avoid crossing pipes and keep electrical components separate from plumbing.
- Label valves and pipes for easy identification.
A well-organized equipment pad simplifies future troubleshooting and upgrades.
- Seal all pool inlets and outlets with expansion plugs.
- Connect a pressure gauge to the suction lines.
- Fill pipes with water and monitor pressure for at least 15 minutes.
- A steady pressure indicates no leaks; a drop signals leaks requiring repair.
- Check all glued joints and threaded fittings for leaks.
- Inspect pump seals and impeller for damage.
- Ensure valves are fully open or closed as needed.
- If leaks persist, re-excavate and repair before backfilling.
Pressure testing protects your investment by catching leaks early.
| Mistake | How to Avoid |
|---|---|
| Improper site selection | Choose a well-drained, accessible location for the equipment pad. |
| Inadequate trench depth | Bury pipes at least 2 feet deep to prevent damage and freezing. |
| Ignoring local codes | Consult local regulations and obtain permits before starting. |
| Using too many fittings | Minimize elbows and tees to reduce flow resistance. |
| Overtightening fittings | Use moderate force and proper sealing materials. |
| Incorrect pipe sizing | Select pipe diameter based on pool size and flow requirements. |
| Insufficient straight pipe near pump | Maintain at least 6 inches of straight pipe before and after pumps to prevent cavitation. |
Avoiding these mistakes saves time, money, and frustration.
- Regularly clean skimmer and pump baskets to prevent clogs.
- Inspect visible pipes and fittings for leaks or cracks.
- Winterize plumbing in cold climates by blowing out water and sealing lines.
- Schedule annual professional inspections for pumps, filters, and valves.
- Monitor water chemistry to prevent corrosion or scaling inside pipes.
Routine maintenance extends the life of your plumbing system and keeps your pool water pristine.
Plumbing swimming pool equipment is a critical part of creating a safe, efficient, and enjoyable swimming environment. With careful planning, quality materials, and attention to detail, you can achieve a plumbing system that delivers years of trouble-free service. Always follow best practices, consult local codes, and don't hesitate to seek professional advice when needed. Proper pool plumbing not only ensures clean, healthy water but also protects your investment and enhances your swimming experience.
Schedule 40 PVC pipe is the industry standard for pool plumbing due to its durability, chemical resistance, and ease of installation. It is suitable for both suction and return lines. Flexible PVC can be used in some underground runs, but rigid PVC is preferred for above-ground sections for neatness and strength.
Pipes should be buried at least 2 feet underground to protect them from soil movement, accidental damage, and freezing temperatures. In warmer climates, slightly shallower depths may be acceptable, but deeper burial is generally safer.
Seal all pool inlets and outlets with expansion plugs. Connect a pressure gauge to the suction line and fill the pipes with water. Monitor the pressure for 15 to 30 minutes. A stable pressure reading means no leaks; a drop indicates a leak that must be fixed before backfilling.
Common mistakes include using incorrect pipe sizes, overtightening fittings, excessive use of elbows and tees, ignoring local codes, and failing to pressure test before backfilling. Proper planning and adherence to best practices help avoid these errors.
While many homeowners successfully install their own pool plumbing with sufficient research and preparation, complex systems or local code requirements may necessitate professional installation. Hiring a professional ensures compliance, safety, and long-term reliability.
