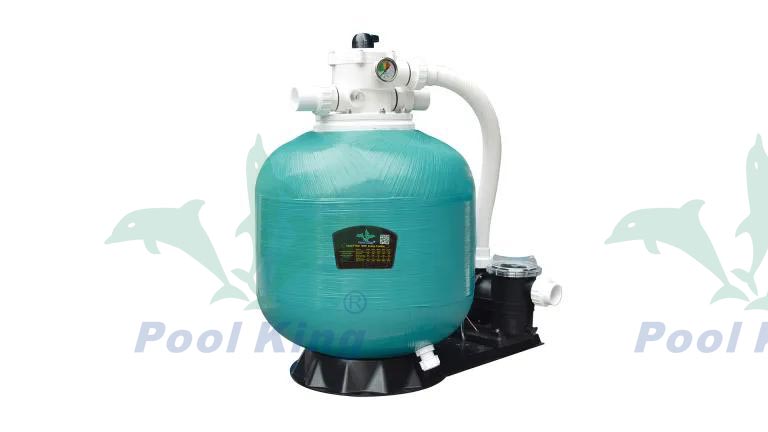

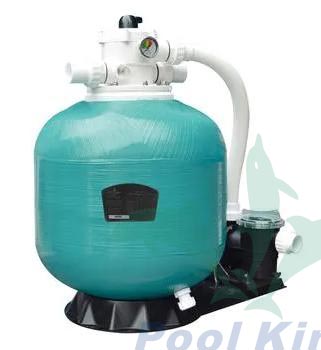

Bubbin Wound Sand Filter With Pump System

A filament wound structural fiberglass tank sand filter with a base plate for pool pump . With exclusive features that catapult the Pool King filter system to the head of the class, coupled with superior materials, engineering, construction and value, you can rest assured that you have chosen the right filter for your pool when you install this combo.

1. Maximum working pressure: 250kPa/36psi/2.5bar
2. Factory Testing Pressure: 400kPa/58psi/4.0bar
3. Maximum Water Temperature: 500 C
4. Size of Gravel: 1mm-2mm
5. Size of Silica Sand: 0.5~0.8mm
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • KB

Bubbin Wound Sand Filter With Pump System New Pool Filter System Swimming Pool Pump With Sand Filter Sand Filter And Pump For Pool Pool Sand Filter With Pump Swimming Pools With Filter And Pump
Product Description

- Fast and easy set-up, ready to install.

- Specifically sized filter and pump combination.

- Large pump strainer basket to extend service periods.

- Union connections for quick installation and servicing.

- Unified pump/filter base for secure system installation.

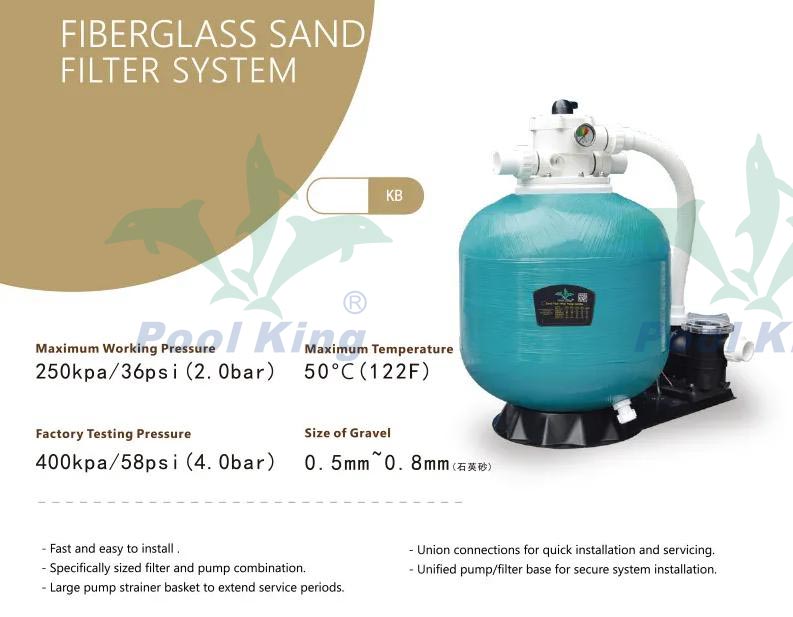

11


Model Filter Diameter （mm） Filter Height （mm） Design Flow（m³/h） Filter Area（m²） Connections（inch/mm） Sand Weight（kg） Matching Pump
KB400 400 750 6 0.13 1.5"/50 30 STP50
KB450 450 810 8 0.16 1.5"/50 45 STP75
KB530 530 870 10 0.20 1.5"/50 80 STP100
KB650 630 870 15 0.32 1.5"/50 130 SMP150
KB700 700 960 19 0.38 1.5"/50 190 SMP150

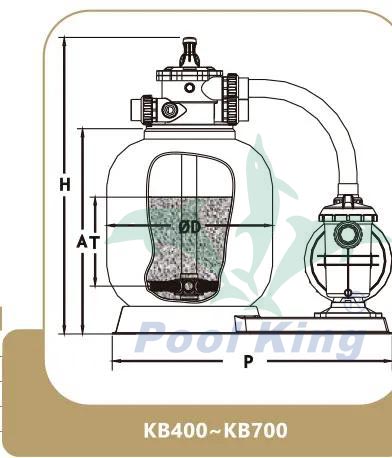

22


Model KB400 PB450 KB500 KB650 KB700
φD(mm) 400 450 530 630 700

H（mm）

 750 810 870 890 960
A（mm） 500 560 620 640 710
P（mm） 575 710 710 770 870
T（mm） 160 230 260 300 400

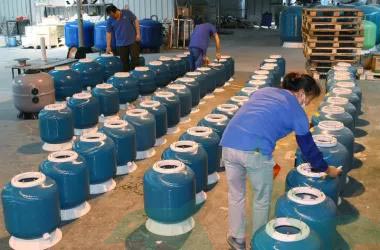

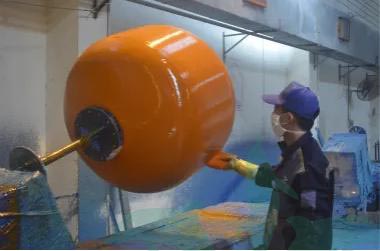

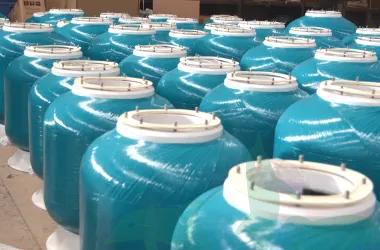

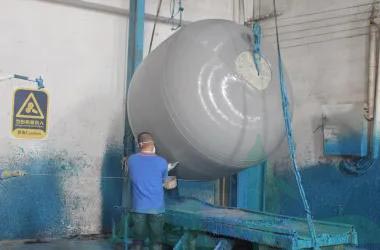

Workshop:

33 55 77
44 66 88

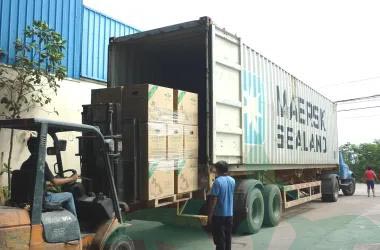

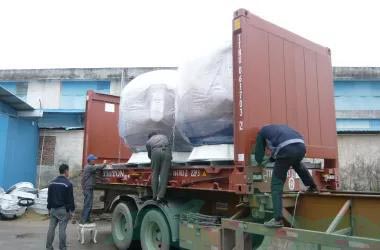

Transportantion:

99 100 110
