Views: 285 Author: Poolking Filter Equipment Publish Time: 2025-08-12 Origin: Poolking Filtration Equipment Manufacturer
In the luxury pool market, a commercial pool sand filter is no longer judged only by filtration capacity. For high-end villa developers, architects, and pool builders, equipment-room components must also communicate quality, reliability, and design intent. This case study explains how a Dubai-based high-end pool builder and distributor used Poolking premium gel-coat fiberglass sand filters to move away from low-margin European sourcing, win a prestigious villa project, and increase its overall project margin by 35%.
The right filtration product can help a distributor reduce project risk, improve showroom appeal, strengthen its bid position, and protect its local reputation.
| Project Item | Details |
|---|---|
| Market | Dubai, UAE, Middle East |
| Client Type | High-end pool builder and regional distributor |
| Application | Luxury infinity pools for private villas |

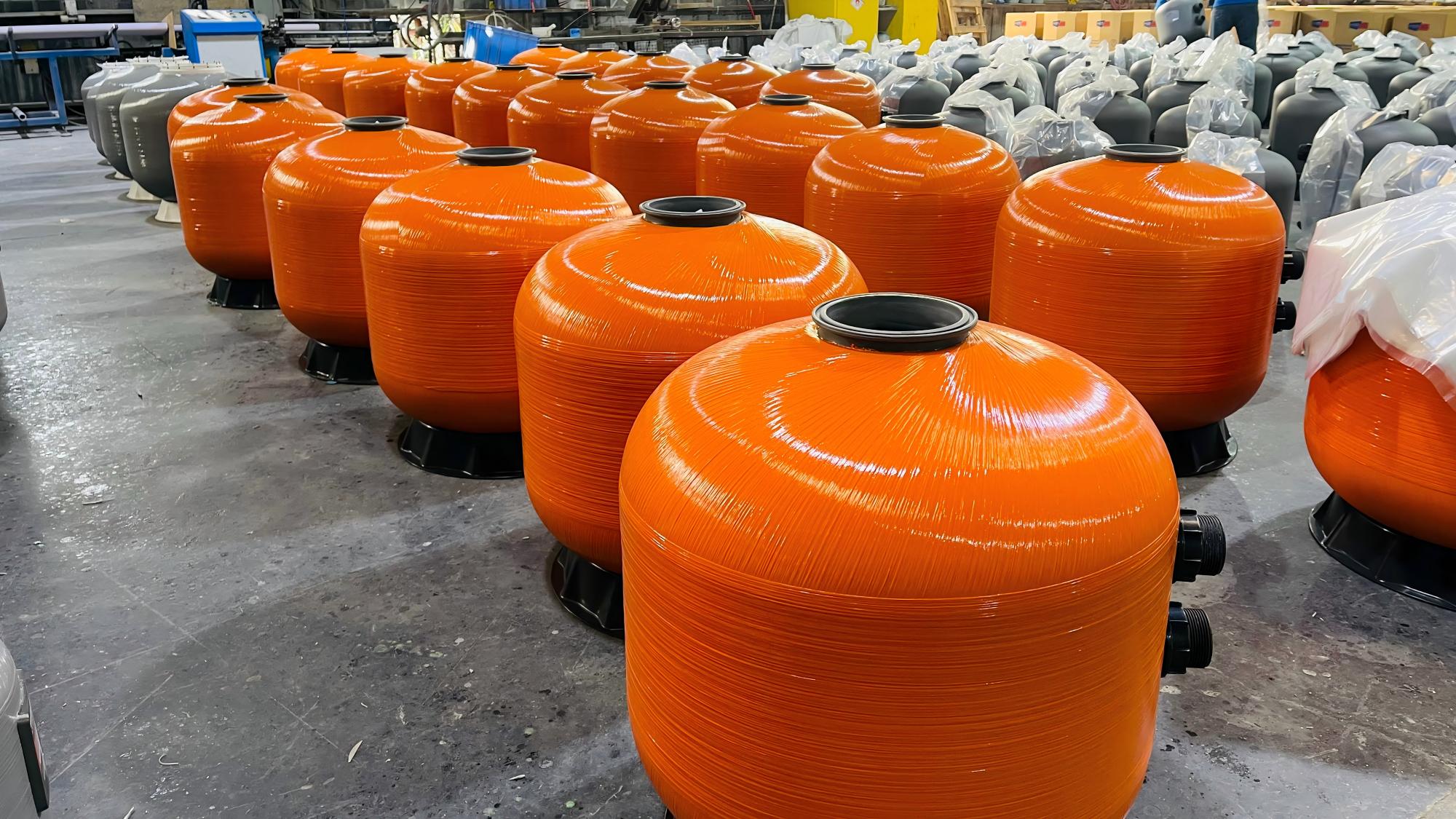

| Product | Premium laminated fiberglass sand filter with gel-coat finish |
| Primary Requirement | Display-grade aesthetics, pressure resistance, and leak prevention |
| Project Outcome | Won a 15-townhouse luxury pool project in Palm Jumeirah |
| Reported Business Result | Overall profit margin increased by 35%; equipment complaint rate remained below 1% |
The client had an established local network and experience serving premium residential projects in Dubai. However, when bidding on multi-million-dollar villa pool developments, it faced a familiar problem: conventional bobbin-wound sand filters were functional, but they did not look appropriate in a luxury equipment room.
For affluent homeowners and project consultants, the appearance of the mechanical room was part of the total property experience. Traditional filters could be perceived as basic, industrial, or low-cost. In a villa where every visible component—from tile finishes to pumps and lighting—is carefully selected, a standard-looking filter could weaken the perceived quality of the entire installation.
The visual issue was only part of the challenge.
For infinity pools, complex circulation systems and demanding operating conditions place significant importance on tank integrity, flange sealing, and long-term material stability. A filter leak in a pool equipment room can become far more than a maintenance inconvenience. When equipment rooms are adjacent to finished basements, landscaped areas, or luxury interior spaces, water damage can create costly repairs and serious reputational consequences for the builder.
To minimize this risk, the client had previously sourced premium European brands. Those products offered a more refined appearance and stronger market acceptance, but high purchase costs left little room for profit. The client needed a credible alternative: a premium pool sand filter that could support higher project margins without compromising the appearance, performance, or reliability expected in the Dubai luxury market.
The client was not searching for the lowest-priced fiberglass sand filter. Instead, it needed a product that could become part of its premium project proposition.
The filter needed a smooth, refined exterior with a high-gloss finish suitable for showroom presentation and luxury villa equipment rooms. It also needed UV resistance appropriate for the hot, high-sunlight conditions of the Middle East, where visual degradation can quickly damage the perceived value of installed equipment.
The client required dependable tank structure, stable connections, and strong sealing performance. Its goal was to reduce the likelihood of tank failures, flange leaks, and installation-related after-sales issues in high-value residential projects.
Details mattered. Valves had to feel solid during operation, pressure gauges needed to be durable and easy to read, and connection interfaces needed to support confident installation. The client also wanted a product that looked and felt comparable to the European brands familiar to its target customers.
 |  |
Poolking approached this project as a premium product and application solution rather than simply supplying a filtration tank. The focus was to support the distributor's sales story while addressing the practical concerns that affect long-term installation performance.

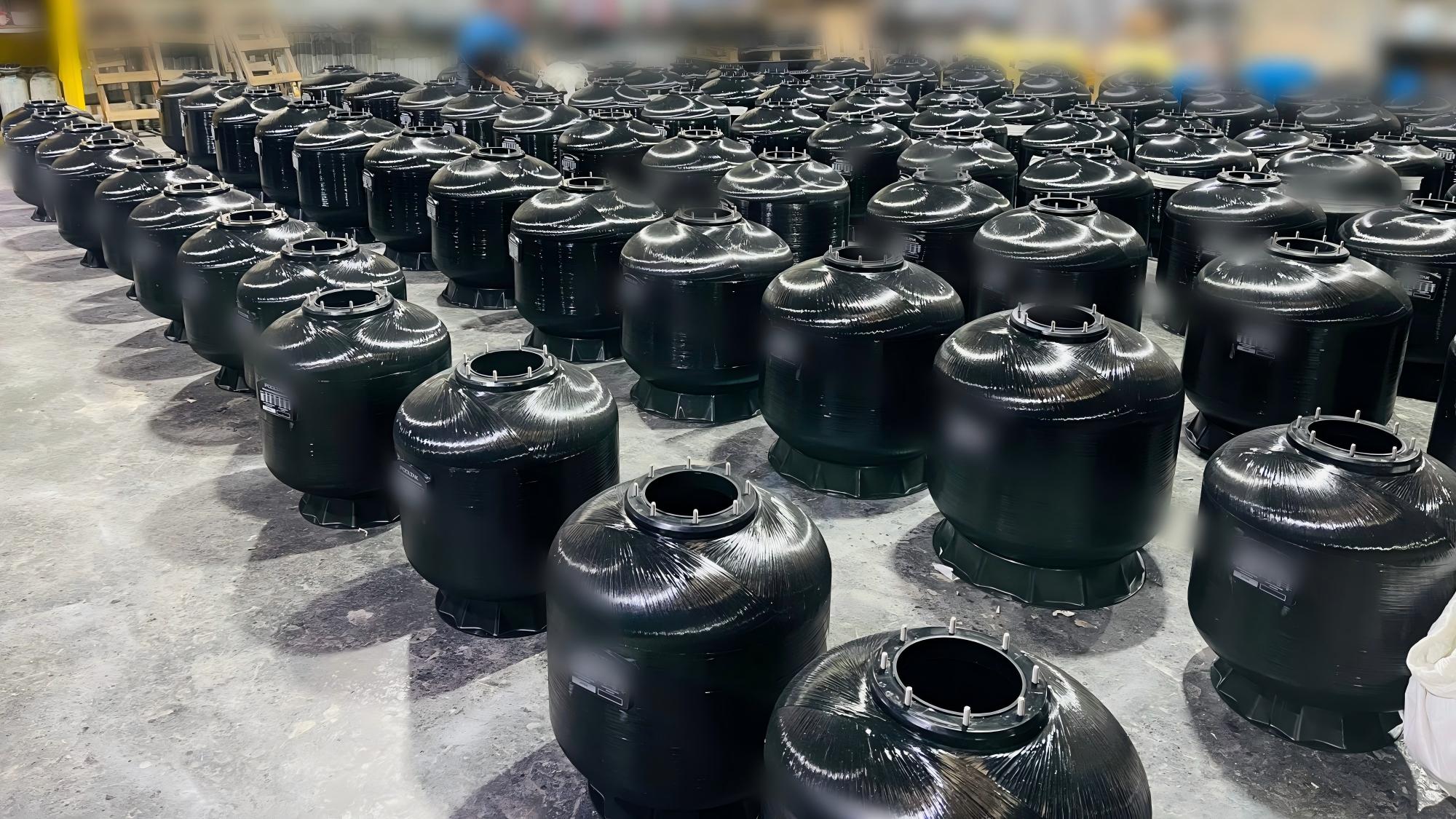

A gel-coat surface is often the first feature a buyer notices. However, a glossy appearance depends on more than applying a surface layer. Thickness control, curing conditions, humidity management, and production cleanliness all affect the final result.
For this premium laminated sand filter line, Poolking controlled gel-coat thickness within a 0.4–0.6 mm range. Production and curing conditions were managed in a controlled environment, with temperatures maintained at approximately 18–25°C and humidity below 70%.
This process helps reduce surface issues associated with uncontrolled humidity and resin stress, including haze, uneven gloss, and alligatoring-like cracking. The result was a cleaner, richer, mirror-grade surface designed to complement premium pool equipment installations.
For the client, this visual quality became a commercial advantage. When the initial samples were placed in its showroom, the filters were displayed prominently rather than hidden as purely functional equipment. That changed how the product could be presented during client meetings and project discussions.
Material selection was central to the project. Low-cost orthophthalic resin systems can be less suitable for demanding long-term exposure conditions, particularly where water chemistry, heat, and oxidation resistance are important considerations.
Poolking's premium fiberglass sand filter line uses ISO/NPG resin. Compared with more basic resin options, ISO/NPG resin is selected for enhanced resistance to water exposure, chemical conditions, and long-term environmental stress. This was especially relevant for the client because luxury infinity pools often operate with sophisticated circulation systems and may experience substantial temperature variation in Dubai's climate.
The material investment was higher, but it aligned with the client's core requirement: protect the project from avoidable equipment-room leakage risks and reduce after-sales exposure. For a high-end pool builder, the cost of a single serious failure can easily outweigh the savings gained from choosing a lower-cost filter.
|  |

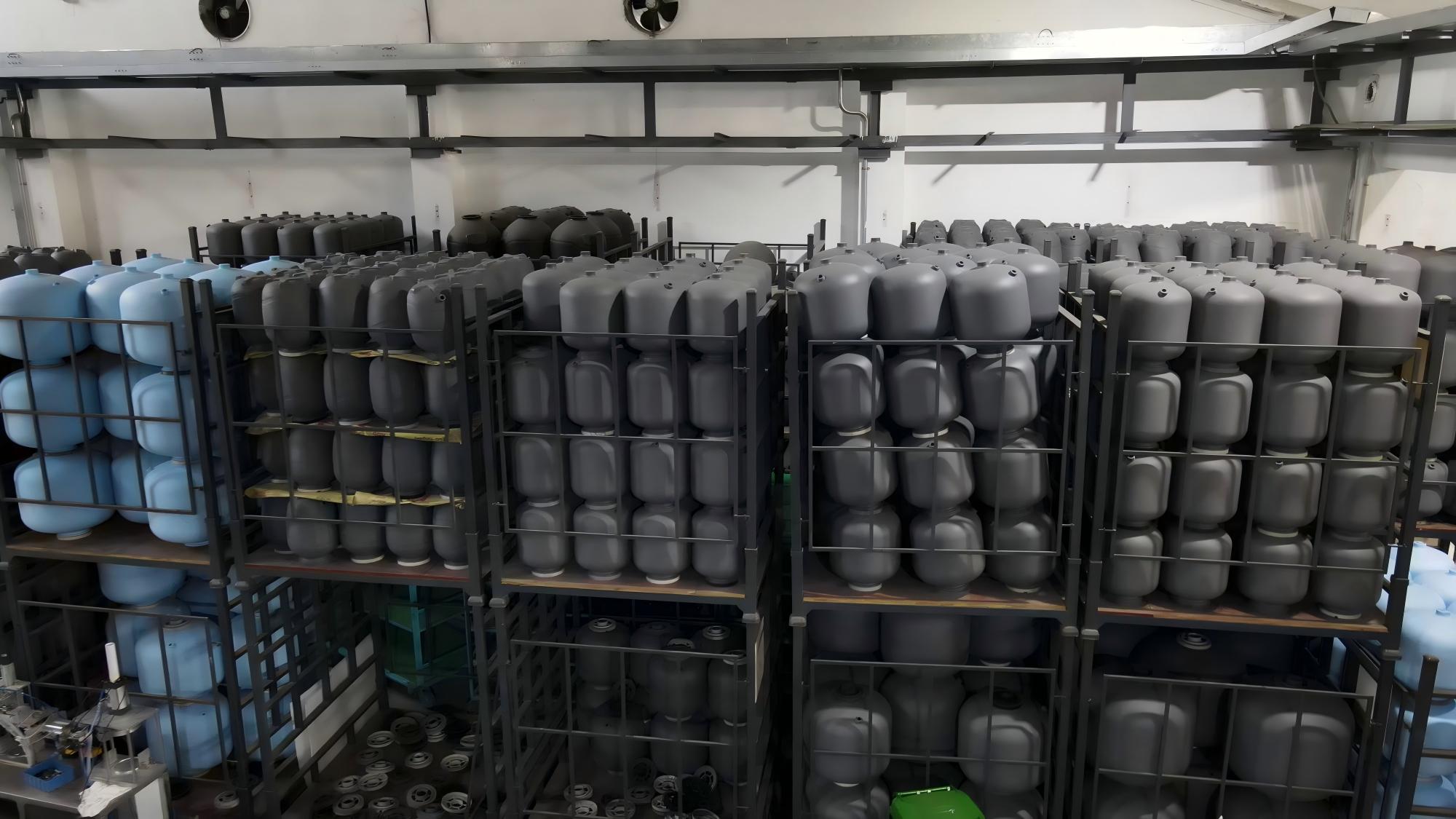

Poolking also incorporated post-curing as part of its manufacturing approach for the premium filter range. After lamination, each tank undergoes controlled post-curing to help relieve residual internal stress developed during the molding process.
This step supports better dimensional stability and helps the finished tank manage the stress associated with operating pressure and temperature changes. While no industrial product can honestly promise that failures will never occur, a disciplined material and post-curing process provides a stronger foundation for reliable long-term performance.
For the Dubai client, this was not merely a technical specification. It was reassurance that the supplier understood the commercial consequences of leakage in a luxury villa environment.
Poolking completed the premium configuration with practical features that strengthened both usability and perceived quality:
- Thick, supportive multiport valves designed to provide a solid operating feel and reduce the chance of loosening during regular use.
- Resilient O-ring sealing components selected to support dependable connection performance.
- SS304 oil-filled pressure gauges supplied as a standard configuration for clearer pressure monitoring and improved durability.
- An LFS transparent lid option, allowing users and maintenance teams to visually inspect the filter interior.
- A 27 cm large-diameter collar design, providing a more substantial appearance and easier access for servicing.

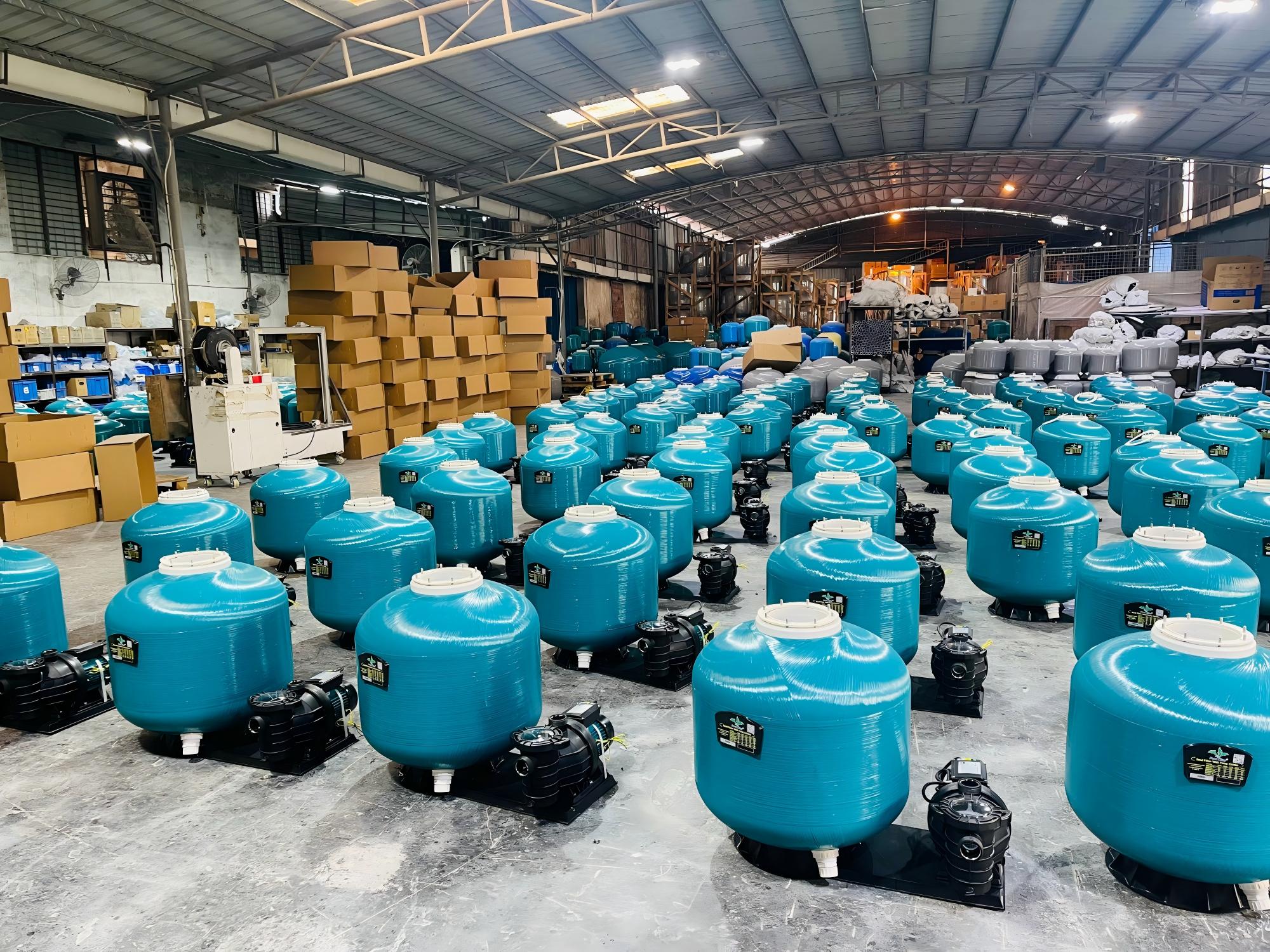

- Reinforced custom packaging designed to help protect the finished gel-coat surface during export transportation and delivery to the job site.
These features helped the client position the product as a complete premium filtration solution, rather than a standard sand filter with a cosmetic upgrade.
After reviewing the initial samples, the client immediately recognized that the filters could support its luxury-market positioning. The showroom presentation helped its sales team demonstrate a product that looked appropriate for high-end residential projects while still offering a more favorable commercial structure than its previous European sourcing model.
That same year, the client secured the pool construction contract for 15 top-tier townhouses in Palm Jumeirah, Dubai. The premium gel-coat pool sand filters were used as part of the filtration solution for the luxury infinity pool installations.
According to the client's project feedback, its overall profit margin increased by 35%. At the same time, the equipment complaint rate remained below 1%, helping the distributor maintain confidence in the product among local designers, consultants, and premium residential clients.
The key outcome was not simply a lower purchase cost. The client gained a product it could sell at a premium, display with confidence, and integrate into a high-value project without undermining its own brand image.
This project shows that premium pool equipment is not defined by branding alone. It is built through visible craftsmanship, material discipline, controlled manufacturing processes, and a practical understanding of the risks faced by pool builders after installation.
For regional master distributors and high-end pool builders, a premium fiberglass sand filter should deliver three forms of value:
- Commercial value: A more competitive procurement structure that enables healthier margins in premium bids.
- Brand value: A refined product appearance that supports a luxury showroom, design presentation, and high-end project identity.
- Operational value: A well-engineered filtration tank, sealing system, and accessory configuration designed to reduce avoidable installation and after-sales concerns.
With more than 20 years of manufacturing experience and two production bases in Guangzhou and Taishan City totaling 60,000 square meters, Guangdong Poolking supplies commercial pool sand filters, fiberglass sand filters, plastic sand filters, cartridge filters, DE filters, pumps, LED lights, fittings, and integrated pool filtration solutions.
For B2B partners targeting the premium pool equipment market, Poolking's role goes beyond manufacturing. We help distributors and builders create a stronger offer: one that combines dependable filtration performance, display-grade aesthetics, and a more profitable route into high-end pool projects.
Want to win more luxury pool bids while protecting your project margin and reducing equipment-room risk?
Contact Poolking to request a premium gel-coat sand filter sample, material specifications, and detailed product testing information for your high-end pool filtration projects.
