Installing the system should be professional and qualified electrician to connect this product.
It should ensure that the wiring is firm and reliable. All wiring work should comply
with relevant electrical regulations.
Propulsion system: Paddle wheel
Water Flow: Max: 16667L/min
Swimming distance: 5-8m
Energy consumption (per hour): 830-2800w

Parametertable
Name | Portable with AC motor (standard) | Portable with 36V DC motor (optional) | Optional |
Size (mm) | 5900X2240X1360 | 5900X2240X1360 |
|
Packing size (mm) | 5960X2300X1500 | 5960X2300X1500 |
|
Net weight (kg) | 1600 | 1600 |
|
Gross weight (kg) | 1800 | 1800 |
|
Water injection (t) | 9 | 9 |
|
Voltage(V) | 380 | 220 |
|
CurrentA) | 15.7 | 25.9 |
|
Power(kW) | 6 | 5.7 |
|
Configurationtable |
Circulation pumps | 1HP(1 set) | 1HP(1set) |
|
Massage pumps | 3HP(1set) | 3HP(1set) |
|
Heating system |
|
| Heatpump(4.5kW)Thermostatic furnace(11kW) |
Electronic control system | 380V | 220V |
|
Laminar flow thruster | 2.8kW | 2.5kW | 3.3kW(Import) |
Speed control mode | Stepless speed control(1-99%) | Stepless speed control(1-99%) |
|
Underwater lights& Beads | Diameter130mm, LEDunderwaterlight10W(1pcs) +LEDminiSmallcolorlight(9pcs) | Diameter130mm, LEDunderwaterlight10W(1pcs) +LEDminiSmallcolorlight(9pcs) |
|
Disinfection/sterilization system | Ozone generator(6W) Photocatalytic disinfector(69W) | Ozone generator(6W) Photocatalytic disinfector(69W) | Salt chlorine machineCopper and silver ions |
Total nozzles | 40pcs | 40pcs |
|
Filter | Pool skimmer(1pcs) Sand filter (1pcs) | Pool skimmer(1pcs) Sand filter (1pcs) |
|
Skirt plate | Grey wood plastic full skirt | Grey wood plastic full skirt | Semi-inlaid WPC skirt |
Pillow | Grey pillow 2pcs | Grey pillow 2pcs |
|

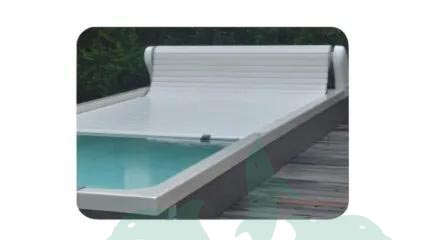

Stainless steel handrail | 1(with automatic pool cover without) | 1(with automatic pool cover without) |
|
lnlet/drainage method | Ballvalve(manual) | Ballvalve(manual) | Electric valve(automatic) |
Note: 1. In order to control the rated power consumption, when the laminar flow thruster is on, the circulating filter system, the heating system automatically enters the energy saving state. 2. Other options for portable with AC motor (standard): with heat pump / imported laminar flow thruster power 11kW, with thermostatic furnace / imported laminar flow thruster power 17.5kW. |
