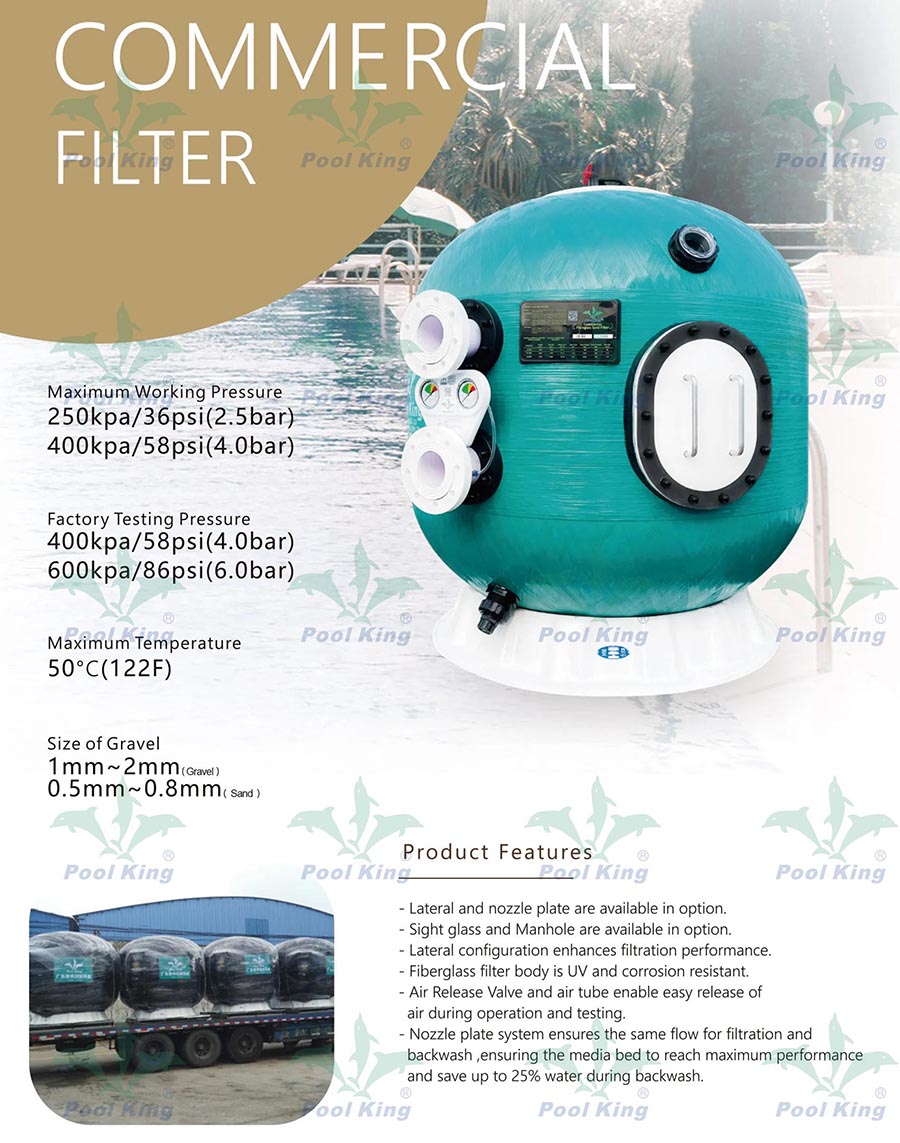

- Lateral and nozzle plate are available in option.
- Sight glass and Manhole are available in option.
- Lateral configuration enhances filtration performance.
- Fiberglass filter body is UV and corrosion resistant.
- Air Release Valve and air tube enable easy release of air during operation and testing.

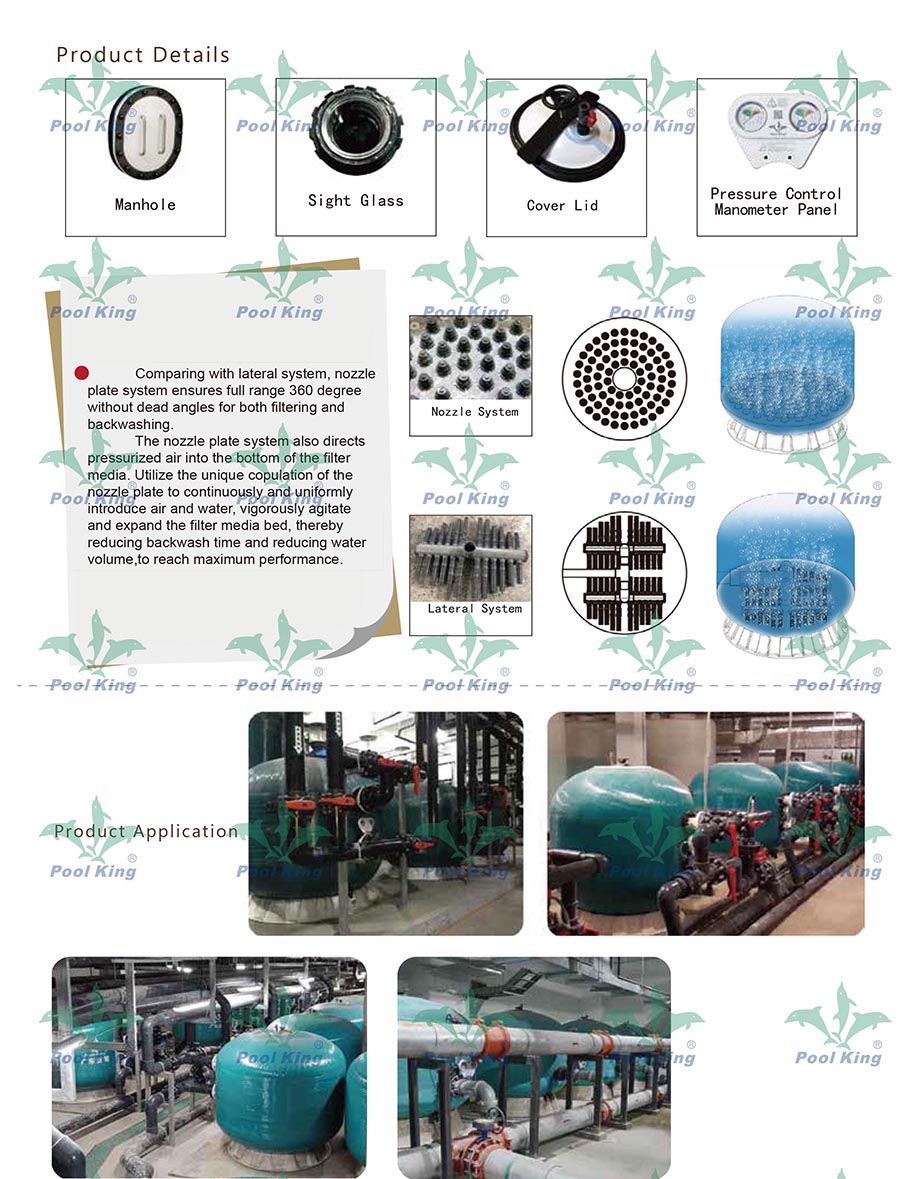

- Nozzle plate system ensures the same flow for filtration and backwash ,ensuring the media bed to reach maximum performance and save up to 25% water during backwash.
| K1200~K3000with lateral | ||||||||
| Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg） | Grave Weight（kg） |
| K1200 | 1200 | 1420 | 30 | 90/3" | 34 | 1.13 | 750 | 300 |
| 40 | 90/3" | 45 | ||||||
| 50 | 110/4" | 57 | ||||||
| K1400 | 1400 | 1670 | 30 | 90/3" | 46 | 1.54 | 1200 | 500 |
| 40 | 110/4" | 61 | ||||||
| 50 | 110/4" | 77 | ||||||
| K1600 | 1600 | 1750 | 30 | 110/4" | 60 | 2.01 | 1850 | 30750 |
| 40 | 160/6" | 80 | ||||||
| 50 | 160/6" | 101 | ||||||
| K1800 | 1800 | 1950 | 30 | 110/4" | 76 | 2.54 | 2500 | 1050 |
| 40 | 160/6" | 101 | ||||||
| 50 | 160/6" | 127 | ||||||
| K2000 | 2000 | 2130 | 30 | 160/6" | 94 | 3.14 | 3300 | 1150 |
| 40 | 160/6" | 125 | ||||||
| 50 | 160/6" | 157 | ||||||
| K2200 | 2200 | 2350 | 30 | 160/6" | 114 | 3.80 | 4150 | 4170 |
| 40 | 160/6" | 152 | ||||||
| 50 | 200/8" | 190 | ||||||
| K2300 | 2300 | 2350 | 30 | 160/6" | 125 | 4.15 | 4900 | 1600 |
| 40 | 200/8" | 166 | ||||||
| 50 | 200/8" | 208 | ||||||
| K2350 | 2350 | 2350 | 30 | 160/6" | 130 | 4.34 | 5000 | 1800 |
| 40 | 200/8" | 175 | ||||||
| 50 | 200/8" | 217 | ||||||
| K2500 | 2500 | 2450 | 30 | 160/6" | 147 | 4.90 | 6000 | 2200 |
| 40 | 200/8" | 196 | ||||||
| 50 | 200/8" | 245 | ||||||
| K3000 | 3000 | 2650 | 30 | 200/8" | 212 | 7.07 | 8600 | 3300 |
| 40 | 200/8" | 282 | ||||||
| 50 | 250/10" | 354 | ||||||
| k1400~k3000with nozzle | ||||||||
Model | Filter Diameter（mm） | Filter Height （mm） | Flow rate（mm³/h/m²） | Inlet&Outlet De(mm)/inch | Design Flow（m³/h） | Filter Area（m²） | Sand Weight（kg） | Grave Weight（kg） |
| K1400N | 1420 | 1900 | 30 | 90/3" | 46 | 1.54 | 1800 | 220 |
| 40 | 110/4" | 61 | ||||||
| 50 | 110/4" | 77 | ||||||
| K1600N | 1620 | 2000 | 30 | 110/4" | 60 | 2.01 | 2300 | 300 |
| 40 | 160/6" | 80 | ||||||
| 50 | 160/6" | 101 | ||||||
| K1800N | 1830 | 2100 | 30 | 110/4" | 76 | 2.54 | 2900 | 360 |
| 40 | 160/6" | 101 | ||||||
| 50 | 160/6" | 127 | ||||||
| K2000N | 2030 | 2200 | 30 | 160/6" | 94 | 3.14 | 3600 | 440 |
| 40 | 160/6" | 125 | ||||||
| 50 | 160/6" | 157 | ||||||
| K2300N | 2300 | 2350 | 30 | 160/6" | 125 | 4.15 | 4800 | 580 |
| 40 | 200/8" | 166 | ||||||
| 50 | 200/8" | 205 | ||||||
| K2500N | 2500 | 2450 | 30 | 160/6" | 147 | 4.90 | 5700 | 680 |
| 40 | 200/8" | 196 | ||||||
| 50 | 200/8" | 245 | ||||||
| K3000 | 3000 | 2650 | 30 | 200/8" | 212 | 7.07 | 8250 | 980 |
| 40 | 200/8" | 282 | ||||||
| 50 | 250/10" | 354 | ||||||

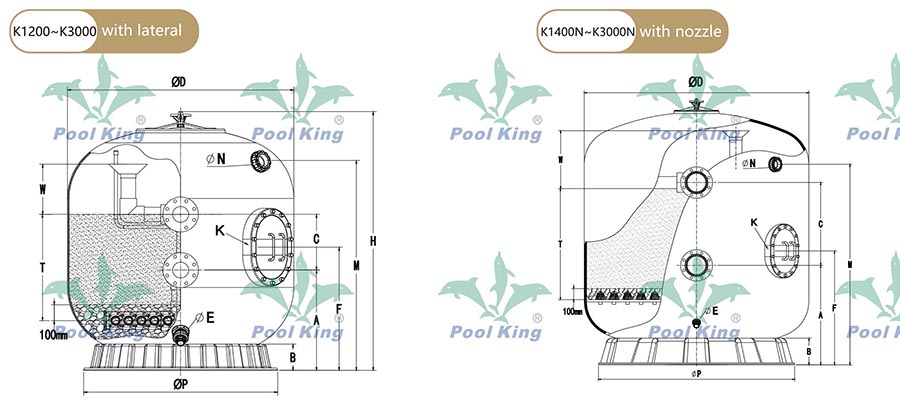

| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | E（mm） | F（mm） | K（mm） | M（mm） | N（mm） | ΦP（mm） | T（mm） | W（mm） |
| K1200 | 1200 | 1422 | 560 | 180 | 340 | 60 | 740 | 180*180 | 1150 | 80 | 1010 | 600 | 300 |
| K1400 | 1400 | 1670 | 650 | 190 | 350 | 60 | 800 | 300*400 | 1250 | 80 | 1240 | 700 | 300 |
| K1600 | 1600 | 1750 | 680 | 215 | 450 | 60 | 870 | 300*400 | 1450 | 80 | 1450 | 800 | 320 |
| K1800 | 1800 | 1950 | 730 | 215 | 550 | 60 | 91 | 300*400 | 1650 | 80 | 1610 | 850 | 320 |
| K2000 | 2000 | 2130 | 800 | 240 | 550 | 60 | 1050 | 300*400 | 1700 | 80 | 1800 | 900 | 350 |
| K2200 | 2200 | 2350 | 900 | 240 | 600 | 60 | 1070 | 300*400 | 1750 | 80 | 1800 | 1000 | 400 |
| K2300 | 2300 | 2350 | 940 | 240 | 600 | 60 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2350 | 2350 | 2350 | 940 | 240 | 600 | 60 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2500 | 2500 | 2450 | 960 | 240 | 600 | 60 | 1100 | 300*400 | 1900 | 80 | 2010 | 1050 | 400 |
| K3000 | 3000 | 2650 | 1020 | 350 | 600 | 60 | 1130 | 300*400 | 2150 | 80 | 2650 | 1100 | 450 |
| Model | ΦD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | E（mm） | F（mm） | K（mm） | M（mm） | N（mm） | ΦP（mm） | T（mm） | W（mm） |
| K1400N | 1420 | 1900 | 700 | 190 | 550 | 40 | 800 | 300*400 | 1400 | 80 | 1240 | 1000 | 300 |
| K1600N | 1620 | 2000 | 810 | 215 | 550 | 40 | 870 | 300*400 | 1500 | 80 | 1450 | 1000 | 320 |
| K1800N | 1830 | 2100 | 850 | 215 | 550 | 40 | 980 | 300*400 | 1600 | 80 | 1610 | 1000 | 320 |
| K2000N | 2030 | 2200 | 900 | 240 | 550 | 40 | 1030 | 300*400 | 1650 | 80 | 1800 | 1000 | 350 |
| K2300N | 2300 | 2350 | 940 | 240 | 600 | 40 | 1070 | 300*400 | 1800 | 80 | 2010 | 1000 | 400 |
| K2500N | 2500 | 2400 | 960 | 240 | 600 | 40 | 1100 | 300*400 | 1900 | 80 | 2010 | 1000 | 400 |
| K3000N | 3000 | 2650 | 1020 | 350 | 600 | 40 | 1130 | 300*400 | 2150 | 80 | 2650 | 1000 | 400 |
 |  |  |
 |  |  |
 |  |  |
