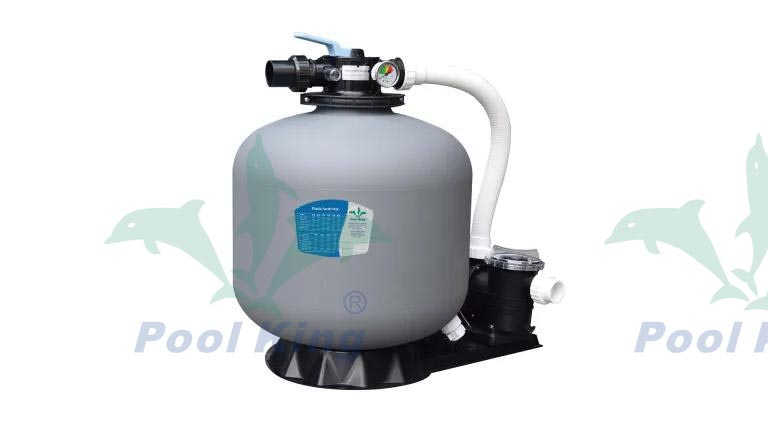

Sand Filter 3 or 4HP Pool Pump High-Flow

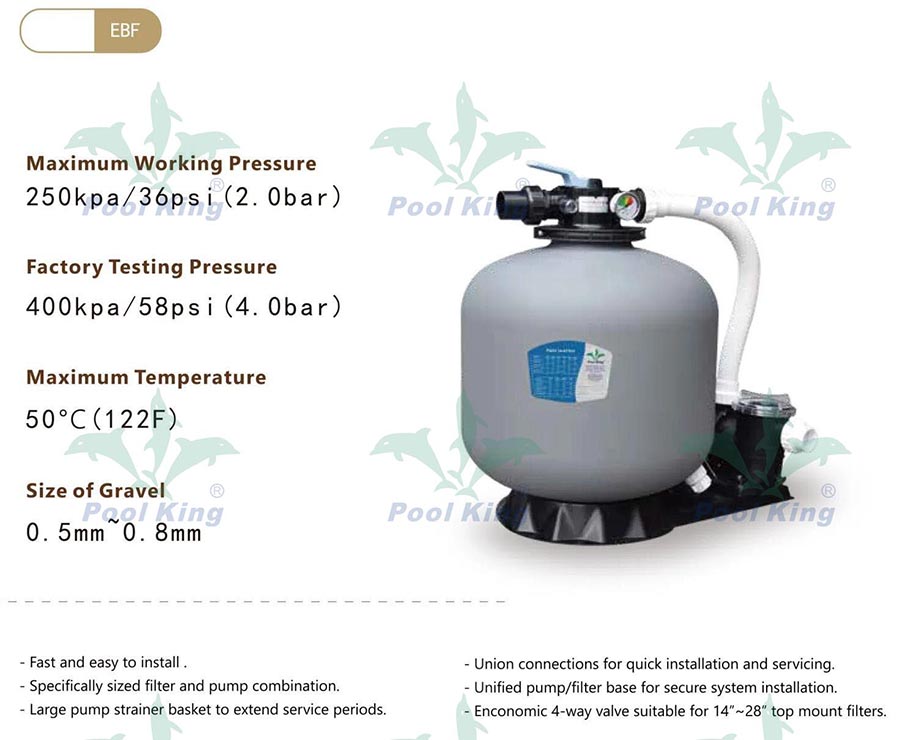

PE plastic body filter is equipped with a 4-way multiport valve assembled on a plastic base and installed with a pool pump. All natural sand provides excellent water. It is economical and environmentally friendly. The filtration kit requires virtually no maintenance except replacement of sand every 5 years. You will enjoy swimming the every day.

1. Maximum Working Pressure 200kpa/2 8psi(2.0bar)
2. Factory Testing Pressure 300kpa/43psi(3.0bar)
3. Maximum Temperature 50°C(122F)
4. Size of Gravel 0.5mm~0.8mm
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • EBF

Sand Filter 3 or 4HP Pool Pump High-Flow Plastic Filter Best Pool Filter System Sand Filter System For Above Ground Pool Above Ground Sand Filter System
Product Description

- Fast and easy to install .

- Specifically sized filter and pump combination.

- Large pump strainer basket to extend service periods.

- Union connections for quick installation and servicing.

- Unified pump/filter base for secure system installation.

- Enconomic 4-way valve suitable for 14”~28” top mount filters.


11


Model Filter Diameter（mm） Filter Height （mm） Design Flow （m³/h） Filter Area（m²） Connections（inch/mm） Sand Weight（kg） Matching Pump
EBF350 350 645 5 0.10 1.5"/50 25 STP35
EBF400 400 670 6 0.13 1.5"/50 30 STP50
EBF450 450 715 8 0.16 1.5"/50 45 STP75
EBF500 530 760 10 0.20 1.5"/50 85 STP100
EBF650 630 860 15 0.32 1.5"/50 150 SMP150
EBF700 700 930 19 0.38 1.5"/50 200 SMP150


22



Model EBF350 EBF350 EBF350 EBF350 EBF350 EBW700
ØD(mm) 350 400 450 530 630 700

H（mm）

 645 670 715 670 860 930
A（mm） 485 510 555 600 700 770
B（mm） 73 73 75 75 95 95
M（mm） 565 570 710 710 770 870
ØP(mm) 575 575 710 710 770 870
T（mm） 150 160 220 260 370 450

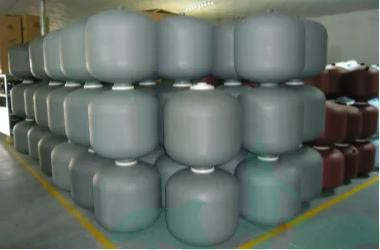

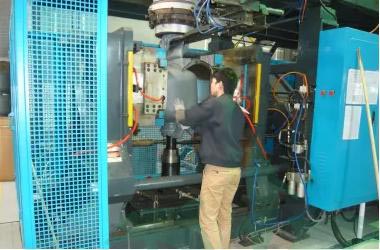

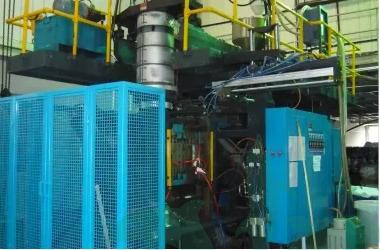

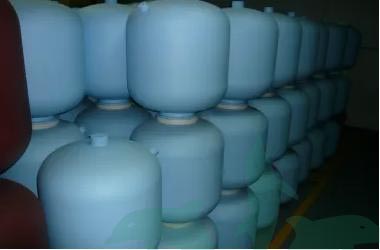

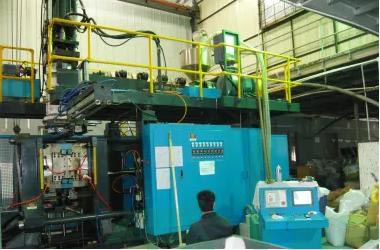

Workshop:


33 55 77
44 66 88

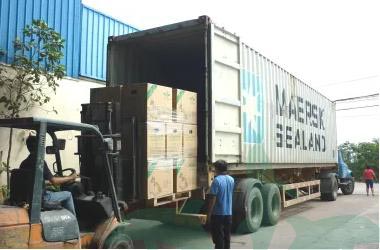

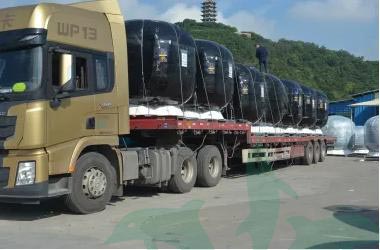

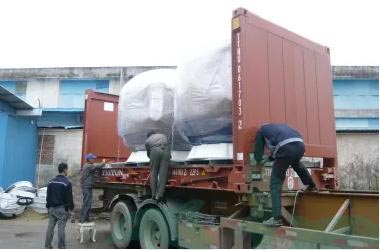

Transportantion:


99 100 110
