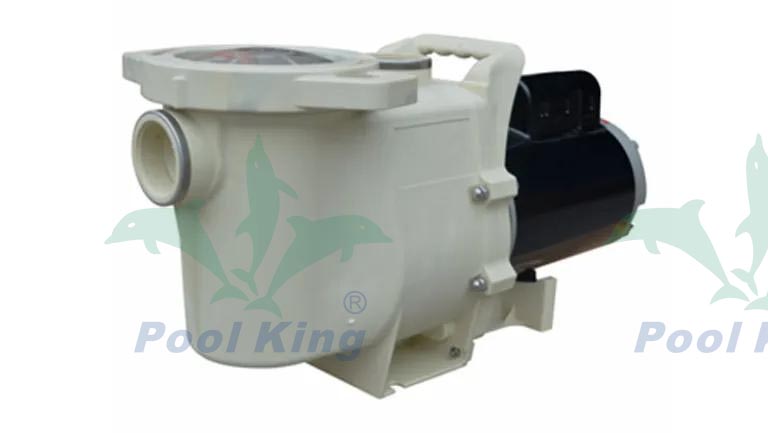

- This pump is independently designed to meet the market demand.
- Single speed or double speed is available.
- Inlet and outlet be reinforce by a stainless steel ring.
- Integral structure handle, convenient installation.

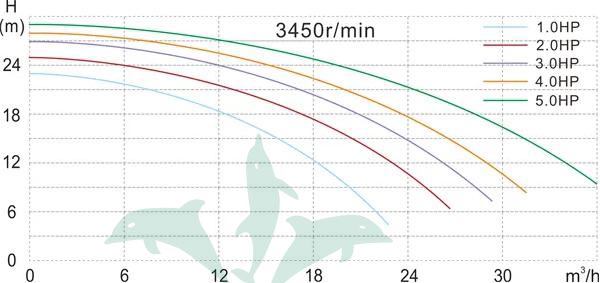

Model | Motor Power (HP) | Voltage (V) | Frequency (RPM) | Qmax (m3/h) | Hmax (mtr) | Connections (mm) |
SWB100 | 1.0 | 220 | 3450 | 22.8 | 23 | 60/63 |
SWB200 | 2.0 | 220 | 3450 | 27.0 | 25 | 60/63 |
SWB300 | 3.0 | 220 | 3450 | 30.0 | 27 | 60/63 |
SWB400 | 4.0 | 220 | 3450 | 33.3 | 28 | 60/63 |
SWB500 | 5.0 | 220 | 3450 | 36.6 | 29 | 60/63 |

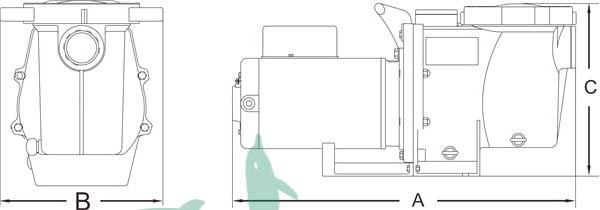

Model | SWB100 | SWB200 | SWB300 | SWB400 | SWB500 |
A(mm) | 624 | 624 | 624 | 624 | 624 |
B(mm) | 276 | 276 | 276 | 276 | 276 |
C(mm) | 314 | 314 | 314 | 314 | 314 |

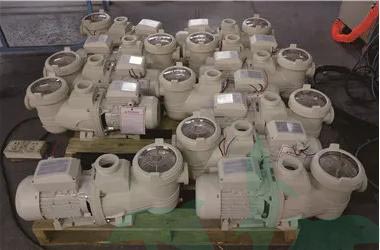

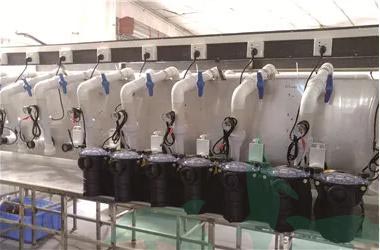

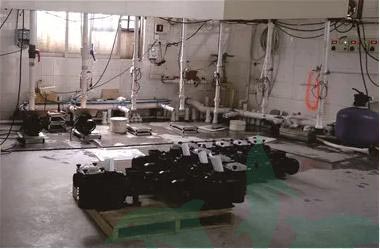

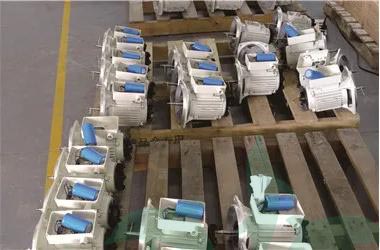

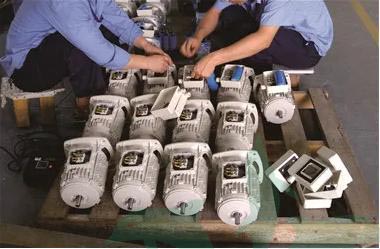

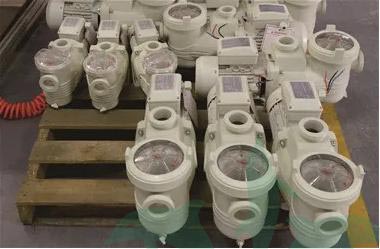

Workshop:
