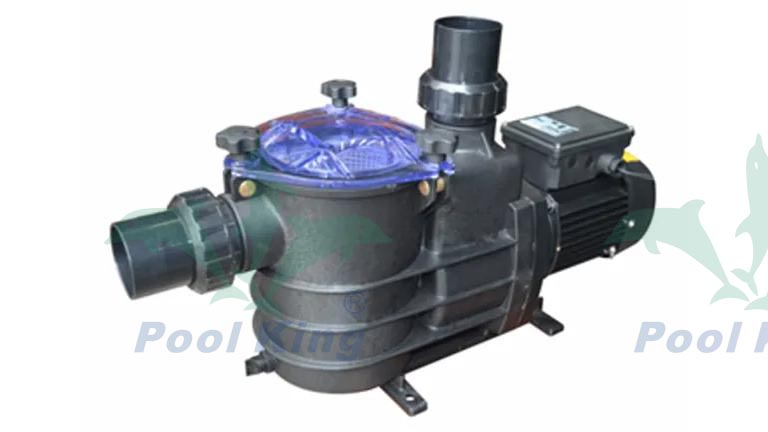

1. It is a centrifugal pump with prefilter, it’s self priming features makes from this pump the best choice for pool water’s filters and automatic vacuum cleaners.
2. Pump body: Polypropylene 30% Fiberglass ; Maxium Temperature: 50°C~65°C.
3. Filter basket: Polypropylene ; Shaft: Stainless Steel AISI 420.
4. Mechanical seal: Carbon+Resin-Ceramics.
5. Impeller and diffuser: Noryl+30% Fiberglass.
6. Insulation class: F ; Waterproof: Ip55.
Model | Motor Power (HP) | Voltage (V) | Frequency (RPM) | Qmax (m3/h) | Hmax (mtr) | Connections (mm) |
PSH-ND080 | 0.8 | 230/400 | 3000 | 19.8 | 16 | 60/63 |
PSH-ND100 | 1.0 | 230/400 | 3000 | 23.8 | 18 | 60/63 |
PSH-ND150 | 1.5 | 230/400 | 3000 | 24.8 | 19 | 60/63 |
PSH-ND200 | 2.0 | 230/400 | 3000 | 34.0 | 20 | 60/63 |

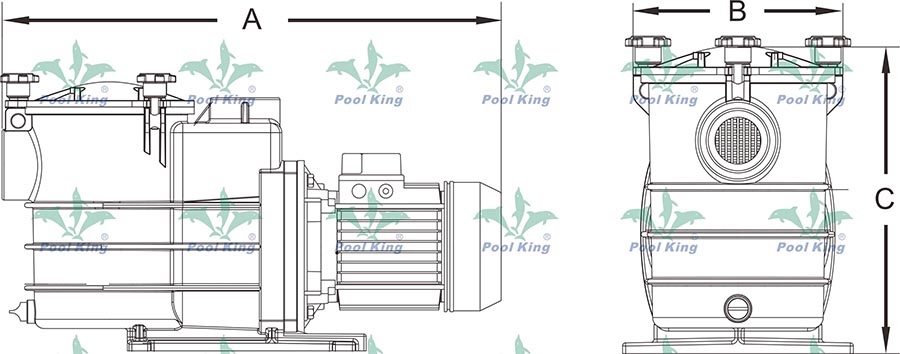

Model | PSH-ND080 | PSH-ND100 | PSH-ND150 | PSH-ND200 |
A(mm) | 565 | 565 | 615 | 615 |
B(mm) | 200 | 200 | 200 | 200 |
C(mm) | 288 | 288 | 288 | 288 |

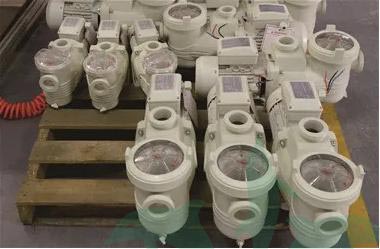

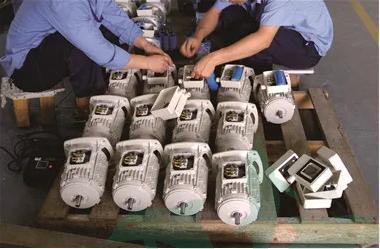

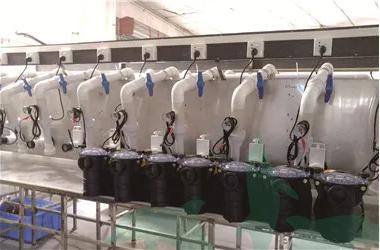

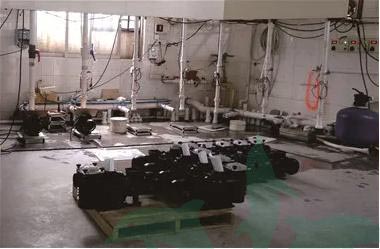

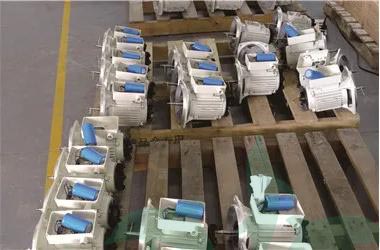

Workshop:
