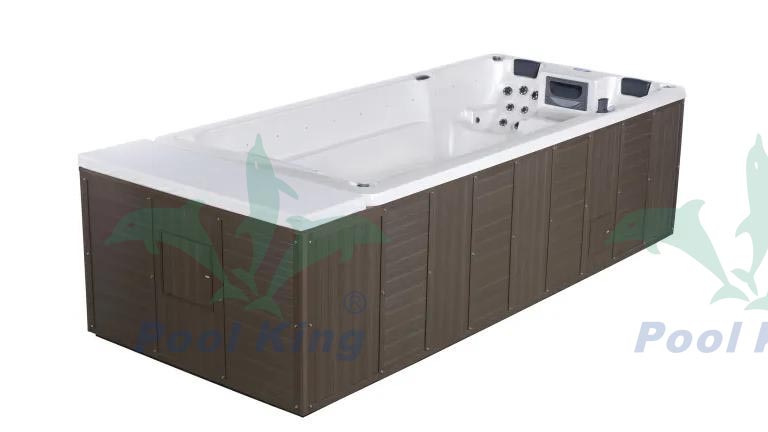

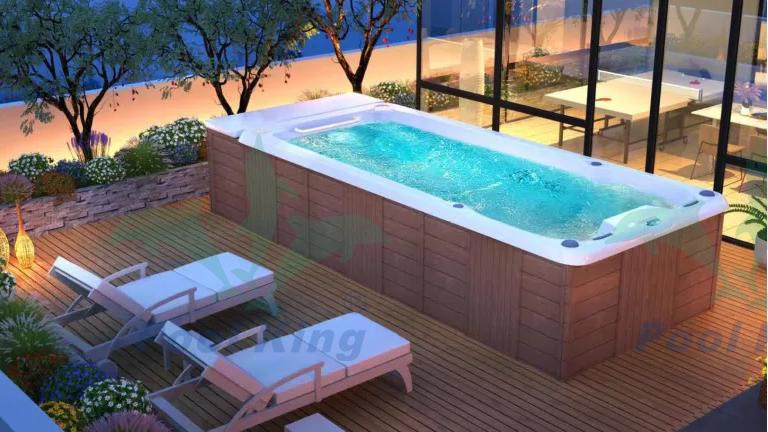

Endless swimming pool can push the water to produce a strong and smooth flow, The paddle wheel is as wide as the pool, generating a feeling of swimming upstream in a river.
Propulsion system: Paddle wheel
Water Flow: Max: 16667L/min
Swimming distance: 5-8m
Energy consumption (per hour): 830-2800w.

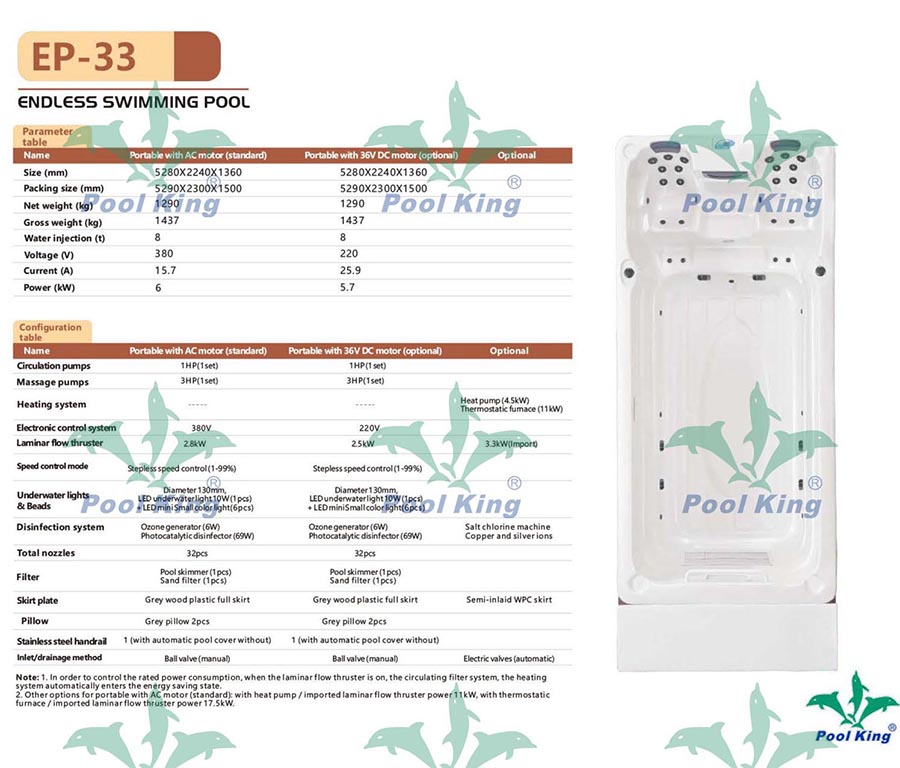

Parametertable
Name | Portable with AC motor (standard) | Portable with 36V DC motor (optional) | Optional |
Size (mm) | 5280X2240X1360 | 5280X2240X1360 |
|
Packing size (mm) | 5290X2300X1500 | 5290X2300X1500 |
|
Net weight (kg) | 1290 | 1290 |
|
Gross weight (kg) | 1437 | 1437 |
|
Water injection (t) | 8 | 8 |
|
Voltage(V) | 380 | 220 |
|
CurrentA) | 15.7 | 25.9 |
|
Power(kW) | 6 | 5.7 |
|
Configurationtable |
Circulation pumps | 1HP(1 set) | 1HP(1set) |
|
Massage pumps | 3HP(1set) | 3HP(1set) |
|
Heating system |
|
| Heatpump(4.5kW)Thermostatic furnace(11kW) |
Electronic control system | 380V | 220V |
|
Laminar flow thruster | 2.8kW | 2.5kW | 3.3kW(Import) |
Speed control mode | Stepless speed control(1-99%) | Stepless speed control(1-99%) |
|
Underwater lights& Beads | Diameter130mm, LEDunderwaterlight10W(1pcs) +LEDminiSmallcolorlight(6pcs) | Diameter130mm, LEDunderwaterlight10W(1pcs) +LEDminiSmallcolorlight(6pcs) |
|
Disinfection/sterilization system | Ozone generator(6W)Photocatalytic disinfector (69W) | Ozone generator(6W)Photocatalytic disinfector (69W) | Salt chlorine machineCopper and silver ions |
Total nozzles | 32pcs | 32pcs |
|
Filter | Pool skimmer(1pcs) Sand filter (1pcs) | Pool skimmer(1pcs) Sand filter (1pcs) | Semi - inlaid WPC skirt |
Skirt plate | Grey wood plastic full skirt | Grey wood plastic full skirt |
|
Stainless steel handrail | 1(with automatic pool cover without) | 1(with automatic pool cover without) |
|
lnlet/drainage method | Ballvalve(manual) | Ballvalve(manual) | Electric valve(automatic) |
Note: 1. in order to contro the rated power consumption. when the aminar fow thruster is on. the circu ating filter svstem. the neatincsystem automatically enters the energy saving state. 2. Other options for portable with AC motor (standard): with heat pump /imported laminar flow thruster power 11kW,with thermostaticfurnace / imported laminar flow thruster power 17.5kW. |
