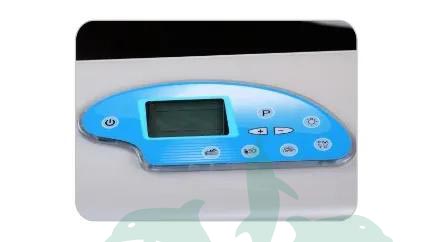

The endless pool can be controlled by the mobile phone that it is adopted modern technology to operate the system. Different flow speed can let you have many joys.
Propulsion system: Paddle wheel
Water Flow: Max: 16667L/min
Swimming distance: 5-8m
Energy consumption (per hour): 830-2800w.

Parametertable
Name | Portable with AC motor (standard) | Portable with 36V DC motor (optional) | Optional |
Size (mm) | 5950X2260X1490 | 6400X2240X1490 |
|
Packing size (mm) | 6010X2300X1670 | 6010X2300X1670 |
|
Net weight (kg) | 1910 | 1910 |
|
Gross weight (kg) | 2110 | 2110 |
|
Water injection (t) | 10 | 10 |
|
Voltage(V) | 380 | 220 |
|
CurrentA) | 13.6 | 22.2 |
|
Power(kW) | 5.2 | 4.9 |
|
Configurationtable |
Circulation pumps | 1HP(1 set) | 1HP(1set) |
|
Massage pumps | 3HP(1set) | 3HP(1set) |
|
Heating system |
|
| Heatpump(4.5kW)Thermostatic furnace(11kW) |
Electronic control system | 380V | 220V |
|
Laminar flow thruster | 2.8kW | 2.5kW | 3.3kW(Import) |
Speed control mode | Stepless speed control(1-99%) | Stepless speed control(1-99%) |
|
Underwater lights& Beads | Diameter130mm, LEDunderwaterlight10W(4pcs) +LEDminiSmallcolorlight(3pcs) | Diameter130mm, LEDunderwaterlight10W(4pcs) +LEDminiSmallcolorlight(3pcs) |
|
Disinfection/sterilization system | Ozone generator(6W)Photocatalytic disinfector (69W) | Ozone generator(6W)Photocatalytic disinfector (69W) | Salt chlorine machineCopper and silver ions |
Total nozzles | 18pcs | 18pcs |
|
Filter | Pool skimmer(1pcs) Sand filter (1pcs) | Pool skimmer(1pcs) Sand filter (1pcs) |
|
Skirt plate | Grey wood plastic full skirt | Grey wood plastic full skirt |
|
Stainless steel handrail | 1(with automatic pool cover without) | 1(with automatic pool cover without) |
|
lnlet/drainage method | Ballvalve(manual) | Ballvalve(manual) | Electric valve(automatic) |
Note: 1. In order to control the rated power consumption, when the laminar flow thruster is on, the circulating filter system, the heating system automatically enters the energy saving state. 2. Other options for portable with AC motor (standard): with heat pump / imported laminar flow thruster power 10.2kW, with thermostatic furnace / imported laminar flow thruster power 16.7kW. |
