The installation site of this product must have reliable electrical grounding facilities and device. Before installation, please confirm that the installation site should have power lines that can provide the corresponding load power for the product.

Parametertable
| Name | Portable with AC motor (standard) | Portable with 36V DC motor (optional) | Optional |
| Size (mm) | 6400X2240X1490 | 6400X2240X1490 |
|
| Packing size (mm) | 6420X2410X1550 | 6420X2410X1550 |
|
| Net weight (kg) | 1700 | 1700 |
|
| Gross weight (kg) | 1920 | 1920 |
|
| Water injection (t) | 11 | 11 |
|
| Voltage(V) | 380 | 220 |
|
| CurrentA) | 22.8 | 36.8 |
|
| Power(kW) | 8.7 | 8.1 |
|
| Configurationtable |
| Circulation pumps | 1HP(1 set) | 1HP(1set) |
|
| Massage pumps | 3HP(1set) | 3HP(1set) |
|
| Heating system |
|
| Heatpump(4.5kW)Thermostatic furnace(11kW) |
| Electronic control system | 380V | 220V |
|
| Laminar flow thruster | 2X2.8kW | 2X2.0kW | 3.3kW(Import) |
| Speed control mode | Stepless speed control(1-99%) | Stepless speed control(1-99%) |
|
| Underwater lights& Beads | Diameter 130mm,LEDunderwaterlight10W(2pcs)+ LED miniSmallcolorlight(9pcs) | Diameter 130mm,LEDunderwaterlight10W(2pcs)+ LED miniSmallcolorlight(9pcs) |
|
| Disinfection/sterilization system | Ozone generator(6W)Photocatalytic disinfector (69W) | Ozone generator(6W)Photocatalytic disinfector (69W) | Salt chlorine machineCopper and silver ions |
| Total nozzles | 17pcs | 17pcs |
|
| Filter | Poolskimmer(2pcs)Sand filter (1pcs) | Poolskimmer(2pcs)Sand filter (1pcs) |
|

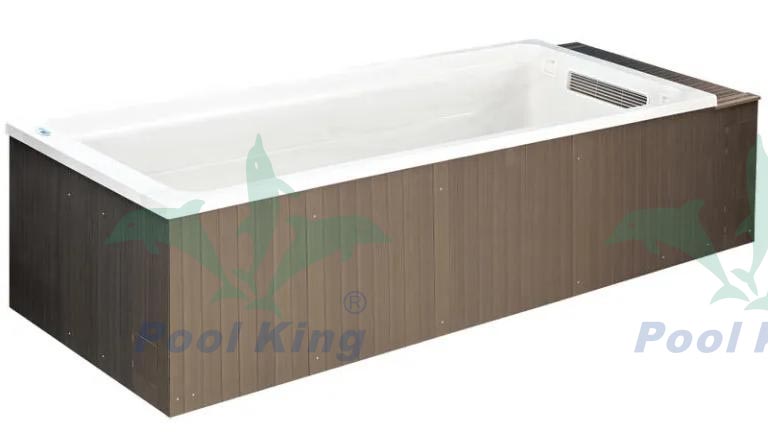

| Skirt plate | Grey wood plastic full skirt | Grey wood plastic full skirt |
|

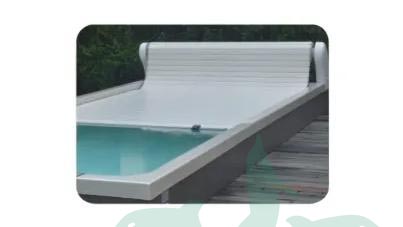

| Stainless steel handrail | 1(with automatic pool cover without) | 1(with automatic pool cover without) |
|
| lnlet/drainage method | Ballvalve(manual) | Ballvalve(manual) | Electric valve(automatic) |
Note: 1. In order to control the rated power consumption, when the laminar flow thrusteris on, the circulating filter system, the heating systemautomatically enters the energy saving state. 2. Other options for portable with AC motor (standard): with heat pump /imported laminar flow thruster power 14.2kW, with thermostaticfurnace / imported laminar flow thruster power 20.7kW. |
