Replacing vinyl intake fittings in an inground pool is a crucial maintenance job that plays a significant role in ensuring your pool operates efficiently, remains safe to swim in, and avoids costly water leakage issues. Whether you're addressing a cracked fitting, dealing with a persistent leak, or upgrading outdated hardware, this guide provides a detailed, step-by-step approach for a successful replacement.
Beyond basic steps, this article also dives into preventive maintenance, brand compatibility tips, and troubleshooting advice. With not only written explanations but also suggested visual aids, both DIY-savvy homeowners and pool service professionals can take on this project with confidence.
Vinyl intake fittings — often called "inlets" or "return fittings" — are installed through the wall of a vinyl liner pool to allow water to flow back from the filtration system into the pool. These fittings are critical for maintaining proper water circulation and filtration efficiency.
When installed with a vinyl liner, they also serve a sealing purpose, keeping water from seeping behind the liner and into the structural wall cavity.
Common Reasons for Replacement:
1. Cracks or Structural Damage — often caused by freeze-thaw cycles, heavy impacts, or improper installation.
2. Chemical Deterioration — prolonged exposure to chlorine, acid, or other sanitizers can weaken plastic over time.
3. Aging and Wear — seals and gaskets eventually break down after years of service.
4. Upgrading Equipment — modern fittings may offer improved flow efficiency and better sealing technology.

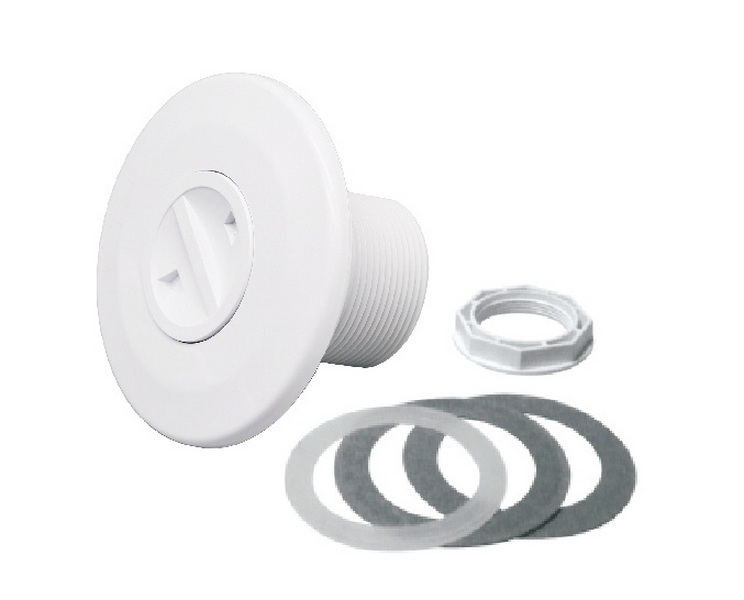

Anatomy of a Vinyl Intake Fitting:
- Fitting Body: Passes through the pool wall, providing the main water pathway.
- Faceplate: Clamps the liner in place and works with gaskets to form a watertight seal.
- Gaskets: Typically rubber or specialized synthetic material to prevent leaks.
- Lock Nut: Secures the fitting body from the outside wall.
- Screws: Stainless steel fasteners holding the faceplate and gasket to the liner.
Having the right equipment at hand before starting ensures a smooth, efficient job:
- Replacement vinyl intake fitting (OEM recommended: Hayward, Pentair, Waterway)
- Phillips screwdriver (#3) and flat-head screwdriver
- Adjustable wrench or channel-lock pliers
- Utility knife or razor blade
- Vinyl liner patch kit (optional, in case of minor liner damage)
- Submersible pump or siphon hose
- Teflon tape (plumbing sealant for threaded connections)
- Shop vacuum (optional for clearing water from fittings)
- Clean towels and safety gloves
- Marker or painter's tape (for measurement and positioning)
Pro Tip: Always use stainless steel screws to prevent rust that can stain your liner.
Safety always comes first:
- Shut off electrical power to all pool equipment (pumps, lights, heaters).
- Inform anyone in the household that the pool will be under maintenance.
- Wear gloves to avoid injury from sharp liner edges or tools.
Clear the surrounding area for comfortable access, and if necessary, move poolside furniture or decorations.
To work on an intake fitting without causing unnecessary flooding:
- Use a submersible pump or siphon to lower the water level at least 4–6 inches below the bottom edge of the fitting.
- If replacing multiple fittings, drain the water below the lowest fitting first.
- Direct drained water to a safe location — avoid dumping chemically-treated water into storm drains unless allowed by local regulations.
Identify the exact fitting that needs replacement. Take note of:
- Liner condition around the fitting — soft spots, wrinkles, or discoloration may indicate ongoing leakage.
- Any previous patchwork or installation anomalies.
If necessary, carefully pull back the liner bead from the coping track in a small section around the fitting. Use caution — vinyl can stretch or tear easily, especially in older liners.
- Use a #3 Phillips screwdriver to remove all screws from the faceplate. Keep screws organized in a container.
- Gently pull the faceplate away and inspect gaskets; usually there are two (one between liner and wall, one between faceplate and liner).
- If the lock nut is buried, dig carefully to access it.
- Use channel-lock pliers to loosen and remove the lock nut from the threaded fitting body.
- Disconnect any attached plumbing with attention to threaded connections — wrap any reused threads later with Teflon tape.
Remove the fitting body and both gaskets entirely.
Before installing a new fitting:
- Clean the wall area with a towel, removing dirt and algae.
- Inspect for rust spots on a metal wall — if found, sand lightly and apply pool wall protectant.
- Ensure the liner is clean, wrinkle-free, and fully dry in the working area.
Gasket Setup:
- Place the first gasket behind the liner, directly against the pool wall surface.
- Insert the new fitting body through the liner and first gasket.
Faceplate and Inner Gasket:
- Place the second gasket on the pool side of the liner.
- Align the faceplate holes with the fitting holes.
- Starting from the top, insert stainless steel screws and tighten gradually in a crisscross sequence to evenly compress the gasket.
Outside Connections:
- Thread the lock nut onto the fitting body from outside the wall, tightening firmly by hand, then with pliers for a snug fit.
- Wrap male threads of connected plumbing with Teflon tape for a secure, leak-free joint.
- Press the liner bead back into its track.
- Smooth away wrinkles with your hand or a soft roller.
- Start refilling the pool water gradually — pause and inspect once water reaches the fitting level to check for seepage.
- Once confident in the seal, restore water to normal levels and power on your circulation system.
- Observe for at least 15 minutes to ensure proper return flow and no visible leaks.
To maximize the lifespan of your intake fittings:
- Monitor Water Chemistry: Keep chlorine, pH, and alkalinity in balance to minimize plastic degradation.
- Winterize Properly: In freezing climates, drain lines and fittings to prevent ice expansion damage.
- Inspect Annually: Check fittings along with other hardware during spring opening.
- Avoid Overtightening: Excess torque can warp fittings and cause future leaks.
- Replace Gaskets Every 5–7 Years: Even if the fitting remains intact, gaskets are often the first to fail.
- Persistent Leak After Replacement:
- Likely gasket misalignment or debris trapped under gasket.
- Disassemble, clean surfaces, and reinstall.
- Water Flow Reduction:
- Check for debris in plumbing lines; intake fitting may have an internal obstruction.
- Wrinkled Liner Around Fitting:
- Smooth liner and retighten; small wrinkles can disappear once water pressure equalizes.
- Cracking Soon After Installation:
- Could be due to incompatible plastic (cheap third-party parts) — switch to OEM.
Replacing the vinyl intake fitting in an inground pool is a manageable project that, when done correctly, restores your pool's water circulation efficiency and prevents costly structural damage from leaks. By following the methodical steps outlined — from water drainage, careful removal, and precise installation through to thorough leak testing — you ensure both the integrity of your liner and the long-term performance of your pool system.
Remember to always work patiently, use high-quality materials, and keep your water chemistry balanced to extend the life of your new fitting. If at any point the process reveals a larger problem, such as severe liner damage or wall corrosion, don't hesitate to consult a pool technician.
Yes, with proper tools and careful attention to detail, most homeowners can perform this DIY. However, if the liner is older or damaged, professional assistance is recommended.
Typically every 10–15 years, but gaskets might require replacement sooner.
No, only lower the water level below the fitting. Full drainage is rarely necessary.
Some third-party parts work well, but OEM fittings ensure compatibility, quality, and warranty coverage.
Refill water to just above the fitting and inspect visually; feel for dampness behind the wall if accessible.
