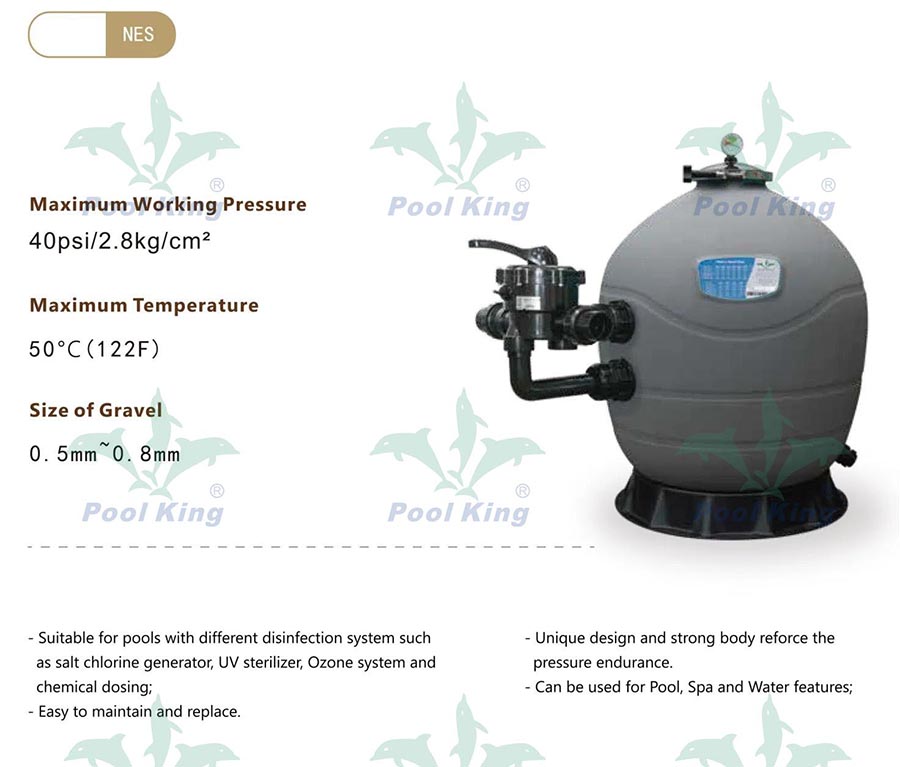

NES
- Unique design and strong body reforce the pressure endurance.
- Suitable for pools with different disinfection system such as salt chlorine generator, UV sterilizer, Ozone system and chemical dosing;
- Can be used for Pool, Spa and Water features;
- Easy to maintain and replace
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area （m²） | Connections（inch/mm） | Sand Weight（kg） |
| NES500 | 500 | 736 | 10 | 0.19 | 1.5"/50 | 90 |
| NES650 | 600 | 830 | 15 | 0.27 | 1.5"/50 | 140 |
| NES700 | 650 | 887 | 19 | 0.32 | 1.5"/50 | 170 |

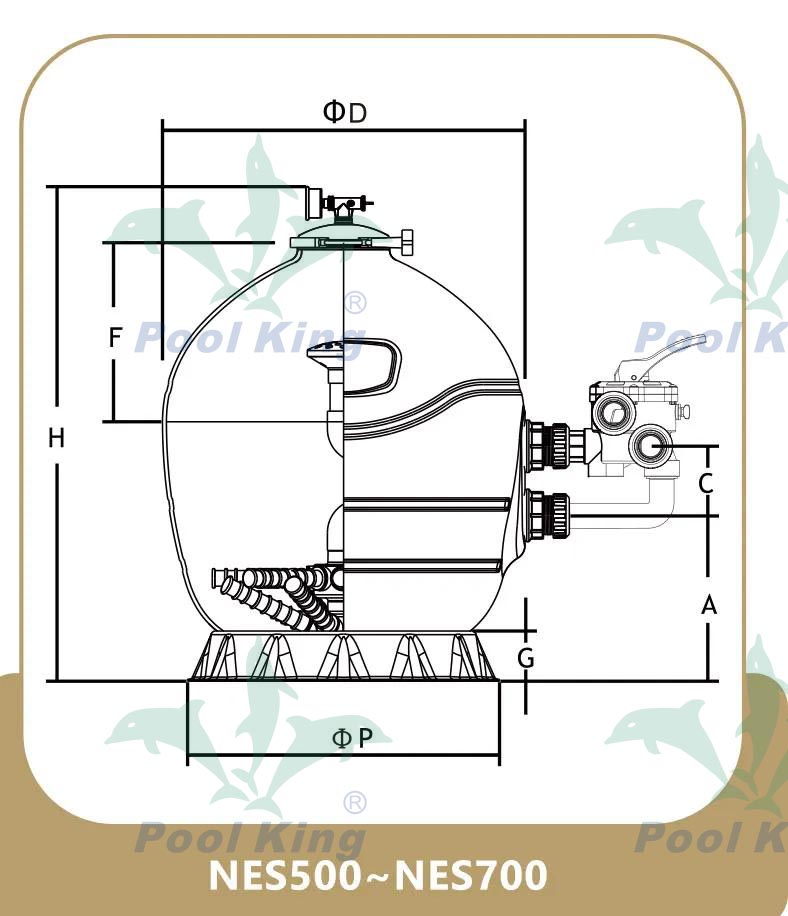

| Model | NES500 | NES650 | NES700 |
| ØD(mm) | 500 | 600 | 650 |
H（mm） | 736 | 830 | 887 |
| A（mm） | 241 | 310 | 296 |
| C（mm） | 125 | 125 | 125 |
| G（mm） | 75 | 75 | 95 |
| ØP(mm) | 390 | 390 | 565 |
| F（mm） | 236 | 285 | 319 |
