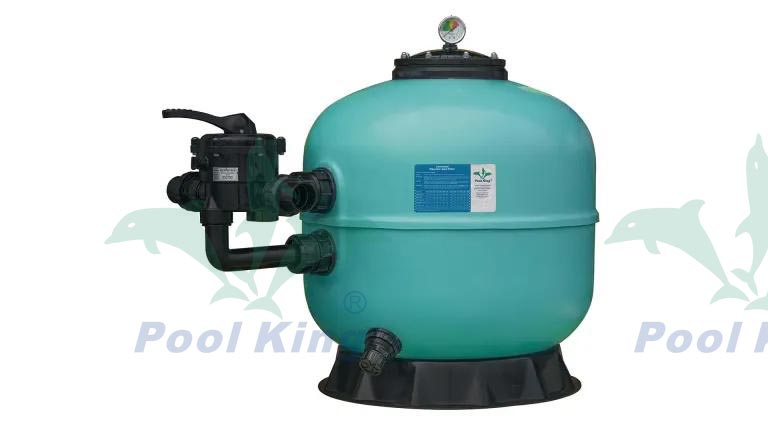

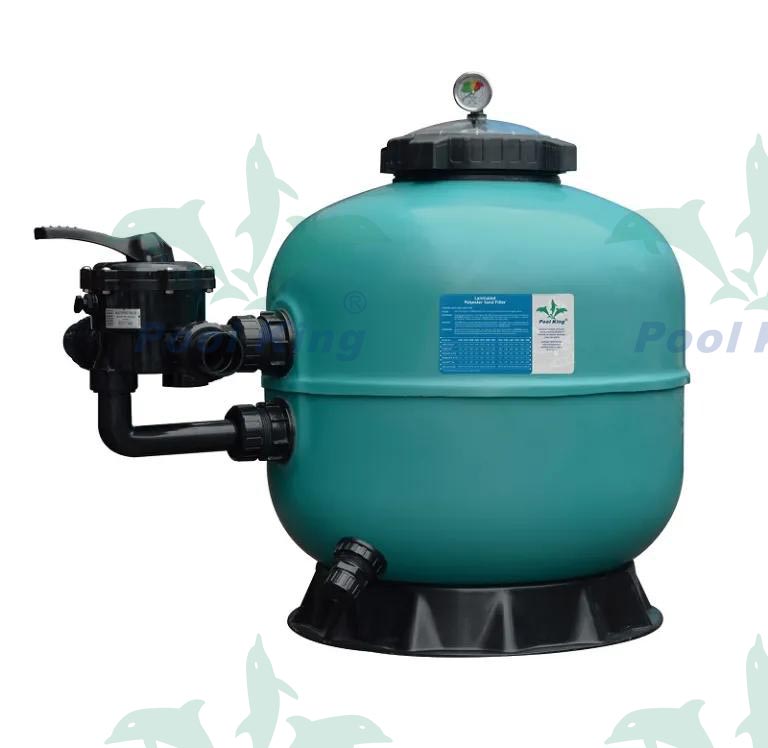

Polyester Laminated Bolt Type Sidemount Sand Filter

The smooth laminated outer shell provides a durable , robust finish . Complete with internal parts, air vent and manometer . The nylon lid fixed with stainless steel bolts . It is designed with a quantity of draining candles to obtain a ratio candle slot surface/filter outlet pipe surface over 2 for a perfect hydraulic performance.

1. Maximum Working Pressure 250kpa/36psi(2.5bar)
2. Maximum Temperature 5 0°C(122F)
3. Size of Gravel 0.5mm~0.8mm
4. Factory Testing Pressure 400kpa/58psi(4.0bar)
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • LBS

Polyester Laminated Bolt Type Sidemount Sand Filter Sidemount Sand Filter Pool Sand Filter Top Mount
Product Description

- Made of anti-corrosive reinforced laminated polyester.

- Smooth and high brightness appearance.

- Automatic air bleed inside and air release valve outside.

- can release all interal air safely.

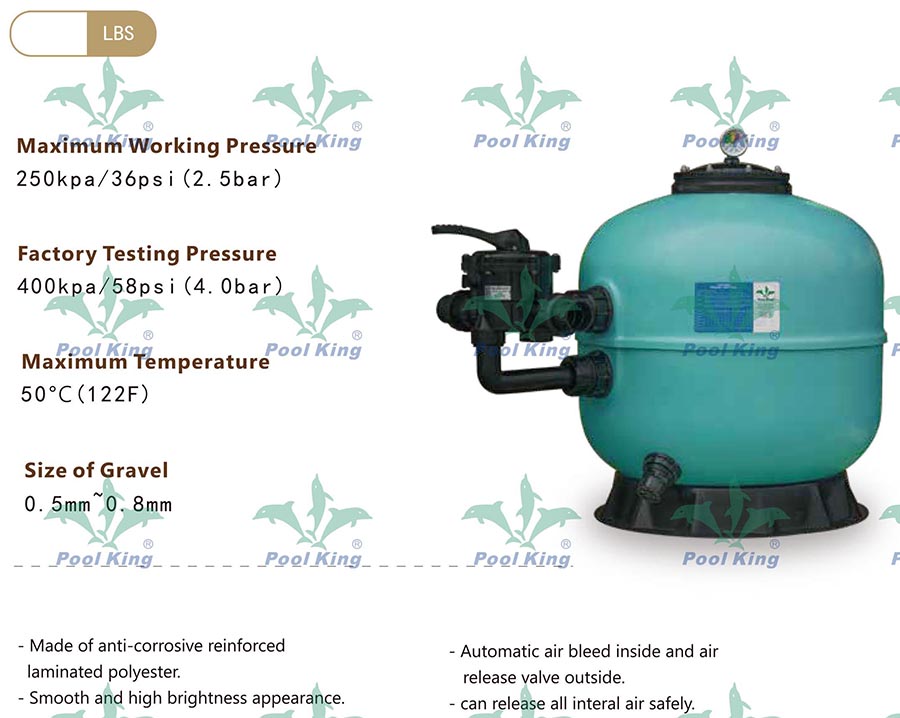

11


Model Filter Diameter （mm） Filter Height（mm） Design Flow（m³/h） Filter Area（m²） Connections（inch/mm） Sand Weight（kg）
LBS450 450 660 8 0.16 1.5"/50 45
LBS500 530 745 10 0.21 1.5"/50 80
LBS650 630 805 15 0.32 1.5"/50 130
LBS700 700 885 19 0.38 1.5"/50 190
LBS750 750 1000 22 0.44 2"/63 230
LBS800 800 1000 25 0.50 2"/63 260
LBS900 900 1115 32 0.64 2"/63 400

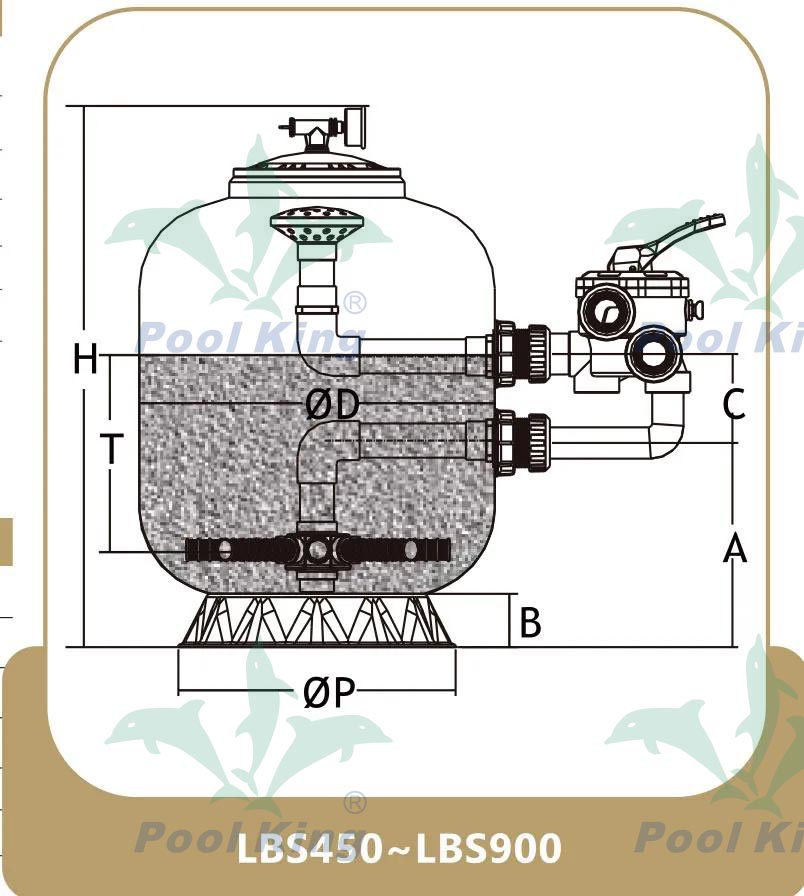

22


Model LBS450 LBS500 LBS650 LBS700 LBS750 LBS800 LBS900
ØD(mm) 450 530 635 700 750 800 900

H（mm）

 660 745 805 885 1000 1000 1115
A（mm） 260 280 310 360 385 385 430
B（mm） 75 75 95 95 150 150 150
M（mm） 125 125 125 125 220 220 220
ØP(mm) 390 390 565 565 790 790 790
T（mm） 270 310 340 380 400 420 480
