- Fast and easy set-up, ready to install .
- Specifically sized filter and pump combination.
- The hair collecting basket of the water pump prolongs the service life
- Union connections for quick installation and servicing. - Integrated design safety base.
- Enconomic 4-way valve suitable for 14”~28” top mount filters

Model | Filter Diameter(mm) | Filter Height(mm) | Design Flow(m³/h) | Filter Area(m²) | Connections(inch/mm) | Sand Weight(kg) | Matching Pump |
EBWF350 | 350 | 645 | 5 | 0.10 | 1.5"/50 | 25 | STP35 |
EBWF400 | 400 | 670 | 6 | 0.13 | 1.5"/50 | 30 | STP50 |
EBWF450 | 450 | 715 | 8 | 0.16 | 1.5"/50 | 45 | STP75 |
EBWF500 | 530 | 760 | 10 | 0.20 | 1.5"/50 | 85 | STP100 |
EBWF650 | 630 | 860 | 15 | 0.32 | 1.5"/50 | 150 | SMP150 |
EBWF700 | 700 | 930 | 19 | 0.38 | 1.5"/50 | 200 | SMP150
|

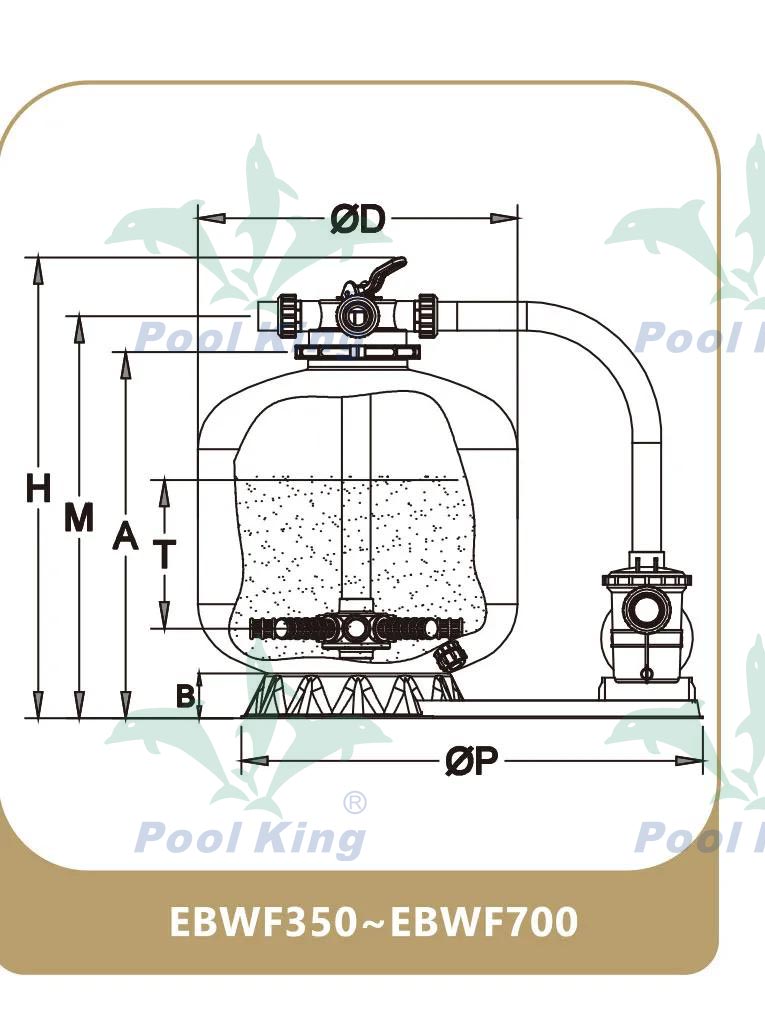

Model | EBWF350 | EBWF400 | EBWF450 | EBWF500 | EBWF650 | EBWF700 |
ØD(mm) | 350 | 400 | 450 | 530 | 630 | 700 |
H(mm) | 645 | 670 | 715 | 670 | 860 | 930 |
A(mm) | 485 | 510 | 555 | 600 | 700 | 770 |
B(mm) | 73 | 73 | 75 | 75 | 95 | 95 |
M(mm) | 565 | 570 | 710 | 710 | 770 | 870 |
ØP(mm) | 575 | 575 | 710 | 710 | 770 | 870 |
T(mm) | 150 | 160 | 220 | 260 | 370 | 450 |
