Feature:
1. PD series pool pump are designed for medium pools and domestic pools.
2. Extremely quiet running.
3. Designed for easy maintenance and repairs.
4. Using TPI bearing.
5. Build in thermal protection.
6. Available in 380V/50Hz220V/50Hz, 110V/60Hz.
7. IPX5 Waterproof standard.
Application:
1. Jet pump for jetted bath tubs, SPA pools, swimming pools, massage stations, cleaning system.
2. Water circulation in fishery.
3. Decorative pool, water display, water processing.

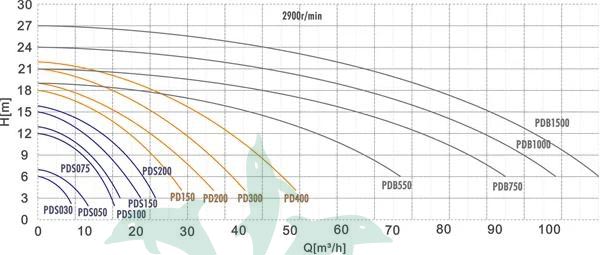

Technical Parameters:
Model | Motor Power (HP) | Voltage (V) | Qmax (m3/h) | Hmax (mtr) | Connections (mm) |
PDS030 | 0.3 | 220 | 7 | 6 | 48/50 |
PDS050 | 0.2 | 220 | 10 | 7 | 48/50 |
PDS075 | 0.75 | 220 | 15 | 12 | 48/50 |
PDS100 | 1.0 | 220 | 16 | 13 | 48/50 |
PDS150 | 1.5 | 220 | 20 | 15 | 48/50 |
PDS200 | 2.0 | 220 | 23 | 16 | 48/50 |
PD150 | 1.5 | 220 | 28 | 18 | 60/63 |
PD200 | 2.0 | 220 | 34 | 19 | 60/63 |
PD300 | 3.0 | 220/380 | 40 | 21 | 60/63 |
PD400 | 4.0 | 220/380 | 50 | 22 | 60/63 |
PDB550 | 5.5 | 380 | 70 | 19 | 80 |
PDB750 | 7.5 | 380 | 90 | 21 | 80 |
PDB1000 | 10 | 380 | 100 | 24 | 80 |
PDB1500 | 15 | 380 | 110 | 27 | 80 |

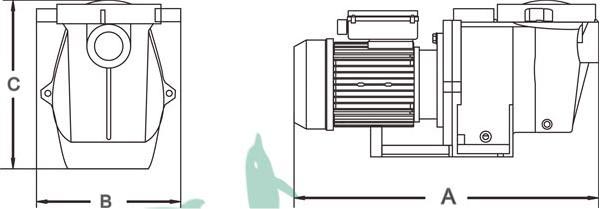

Model | PDS030 | PDS050 | PDS075 | PDS100 | PDS150 | PDS200 | PD150 | PD200 | PD300 | PD400 | PDB550 | PDB750 | PDB1000 | PDB1500 |
A(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 600 | 600 | 600 | 600 | 820 | 820 | 820 | 820 |
B(mm) | 220 | 220 | 220 | 220 | 220 | 220 | 270 | 270 | 270 | 270 | 333 | 333 | 333 | 333 |
C(mm) | 245 | 245 | 245 | 245 | 245 | 245 | 313 | 313 | 313 | 313 | 390 | 390 | 390 | 390 |

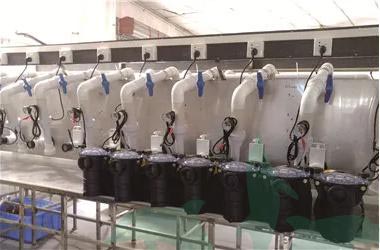

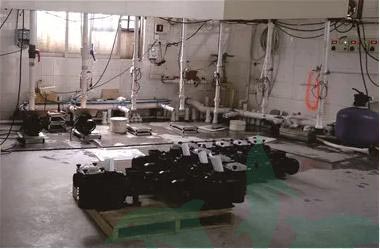

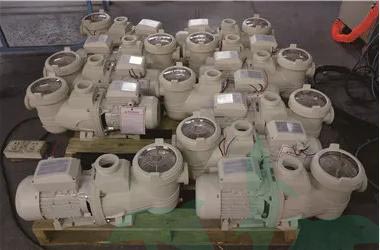

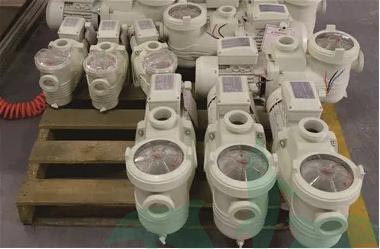

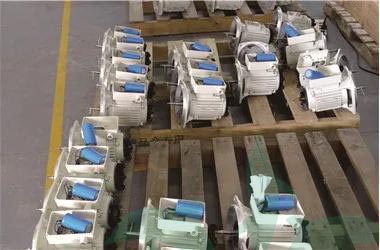

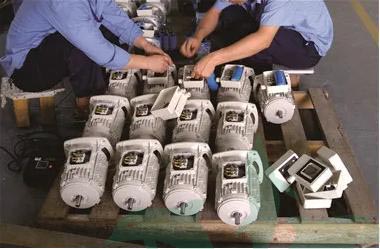

Workshop:
