- IP55 waterproof standard.
- High flow rate.
- Ultra-quiet. - Maximum working pressure : 6kg/cm².
- 316 stainless steel shaft. - Graphite/ceramic mechanical seal.
- Maximum water temperature : 70℃

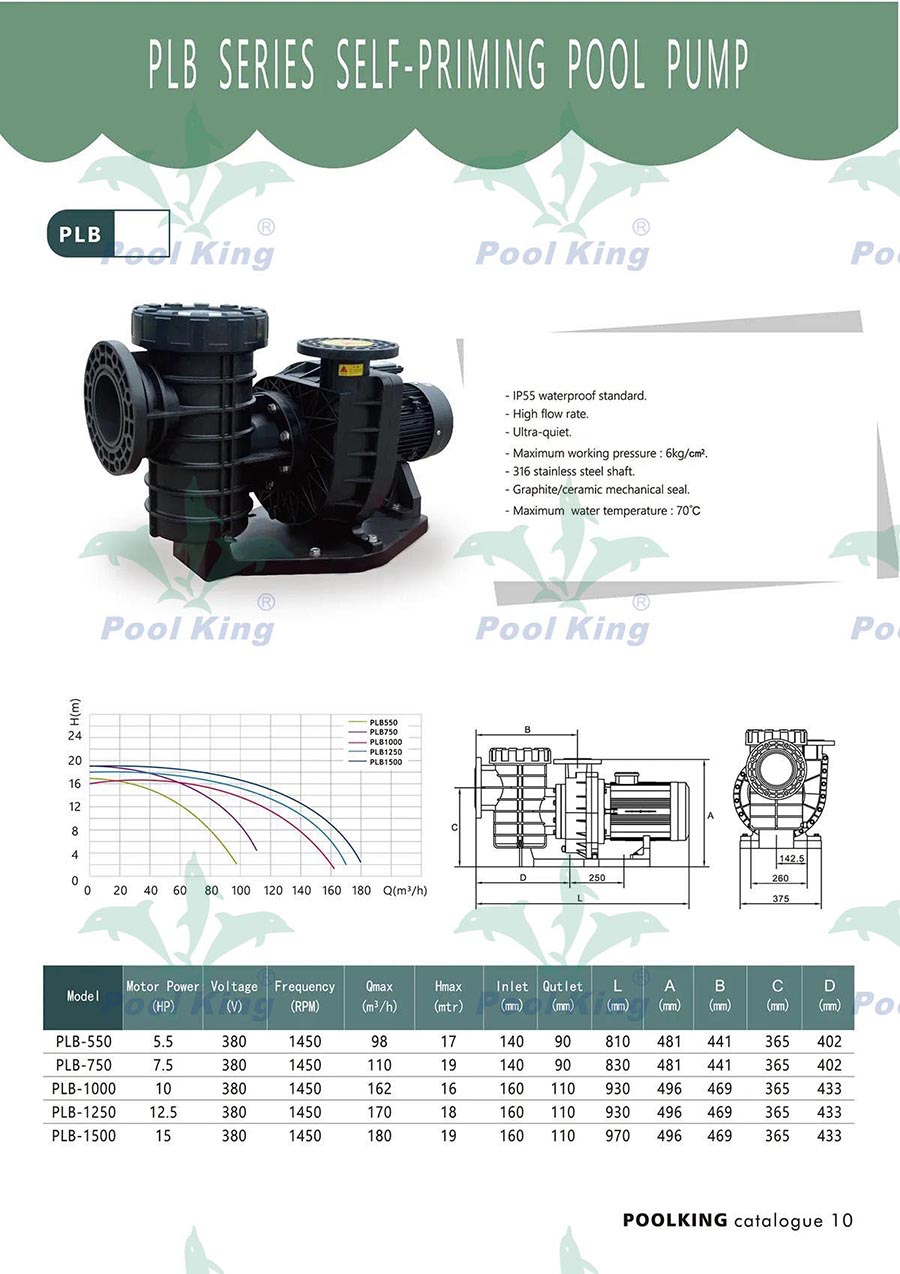

Model | Motor Power(HP) | Voltage(V) | Frequency(RPM) | Qmax(m³/h) | Hmax(mtr) | Inlet(mm) | Outlet(mm) | L(mm) | A(mm) | B(mm) | Cmm) | D(mm) |
PLB550 | 5.5 | 380 | 1450 | 98 | 17 | 140 | 90 | 810 | 481 | 441 | 365 | 402 |
PLB750 | 7.5 | 380 | 1450 | 110 | 19 | 140 | 90 | 830 | 481 | 441 | 365 | 402 |
PLB1000 | 10 | 380 | 1450 | 162 | 16 | 160 | 110 | 930 | 496 | 469 | 365 | 433 |
PLB1250 | 12.5 | 380 | 1450 | 170 | 18 | 160 | 110 | 930 | 496 | 469 | 365 | 433 |
PLB1500 | 15 | 380 | 1450 | 180 | 19 | 160 | 110 | 970 | 496 | 469 | 365 | 433 |
