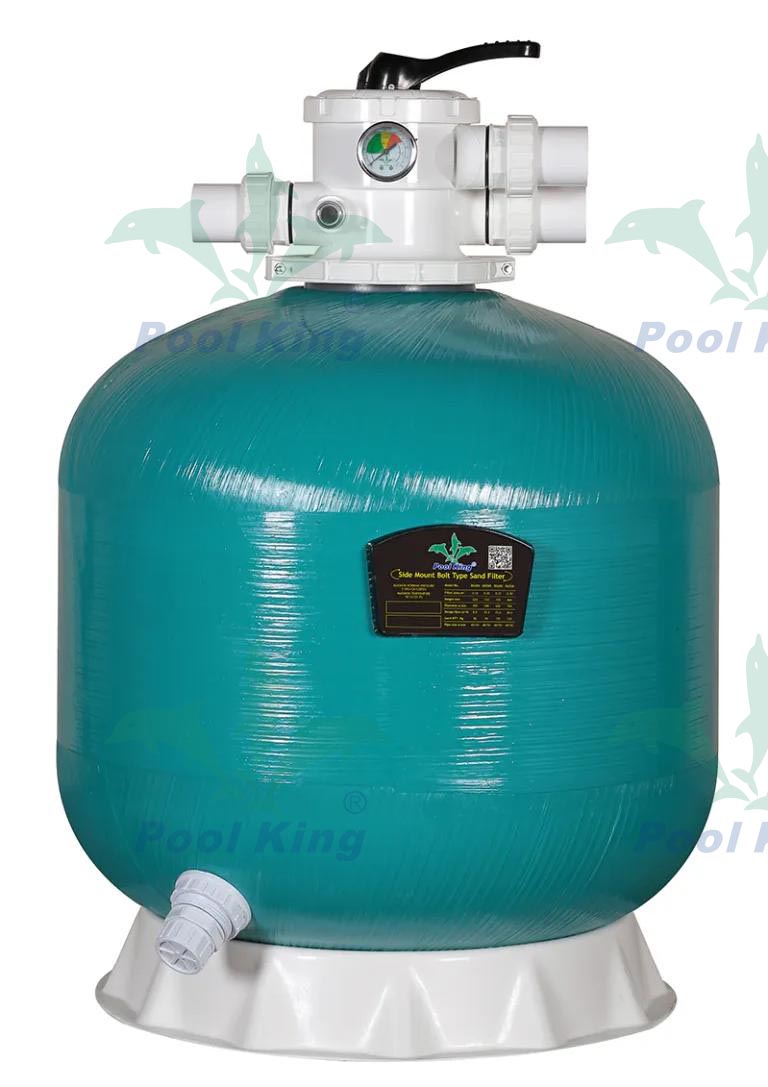

EPW
- Inner tanks are made of high density polyethylene material, corrosive-proof, safe and environmental.
- Outer is constructed of polyester resin and non
- corrosive fibreglass winding for its heavy duty performance and reliablility.
- Sight glass for backwash clarity inspection.
- Clamp lock designed to allow 360° rotation to simplify installation.
- Removable threaded PVC unions both in imperial and metric size
| Model | Filter Diameter（mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area（m²） | Connections（inch/mm） | Sand Weight（kg） |
| EPW350 | 350 | 745 | 5 | 0.10 | 1.5"/50 | 25 |
| EPW400 | 400 | 770 | 6 | 0.13 | 1.5"/50 | 30 |
| EPW450 | 450 | 815 | 8 | 0.16 | 1.5"/50 | 45 |
| EPW500 | 530 | 860 | 10 | 0.20 | 1.5"/50 | 85 |
| EPW650 | 630 | 960 | 15 | 0.32 | 1.5"/50 | 150 |
| EPW700 | 700 | 1030 | 19 | 0.38 | 1.5"/50 | 200 |
| Model | EPW350 | EPW400 | EPW450 | EPW500 | EPW650 | EPW700 |
| ØD(mm) | 350 | 400 | 450 | 530 | 630 | 700 |
H（mm） | 745 | 770 | 815 | 860 | 960 | 1030 |
| A（mm） | 485 | 510 | 555 | 600 | 700 | 770 |
| B（mm） | 73 | 73 | 75 | 75 | 95 | 95 |
| M（mm） | 609 | 629 | 674 | 719 | 819 | 889 |
| N（mm） | 550 | 570 | 615 | 660 | 760 | 830 |
| ØP(mm) | 320 | 320 | 390 | 390 | 565 | 565 |
| T（mm） | 150 | 160 | 220 | 260 | 370 | 450 |
 |  |  |
 |  |  |
 |  |  |
