NEP

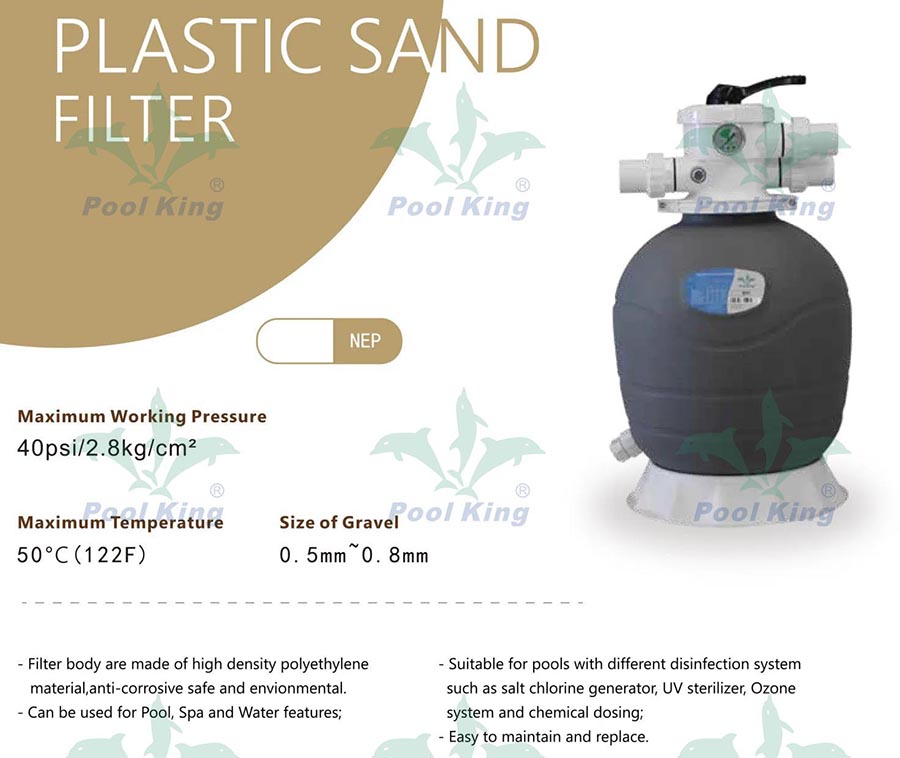

- Filter body are made of high density polyethylene material,anti-corrosive safe and envionmental.
- Suitable for pools with different disinfection system such as salt chlorine generator, UV sterilizer, Ozone system and chemical dosing;
- Can be used for Pool, Spa and Water features; - Easy to maintain and replace.
| Model | Filter Diameter（mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area （m²） | Connections （inch/mm） | Sand Weight （kg） |
| NEP450 | 425 | 767 | 8 | 0.14 | 1.5"/50 | 50 |
| NEP500 | 500 | 890 | 10 | 0.19 | 1.5"/50 | 90 |
| NEP650 | 600 | 983 | 15 | 0.27 | 1.5"/50 | 140 |
| NEP700 | 650 | 1028 | 19 | 0.32 | 1.5"/50 | 170 |

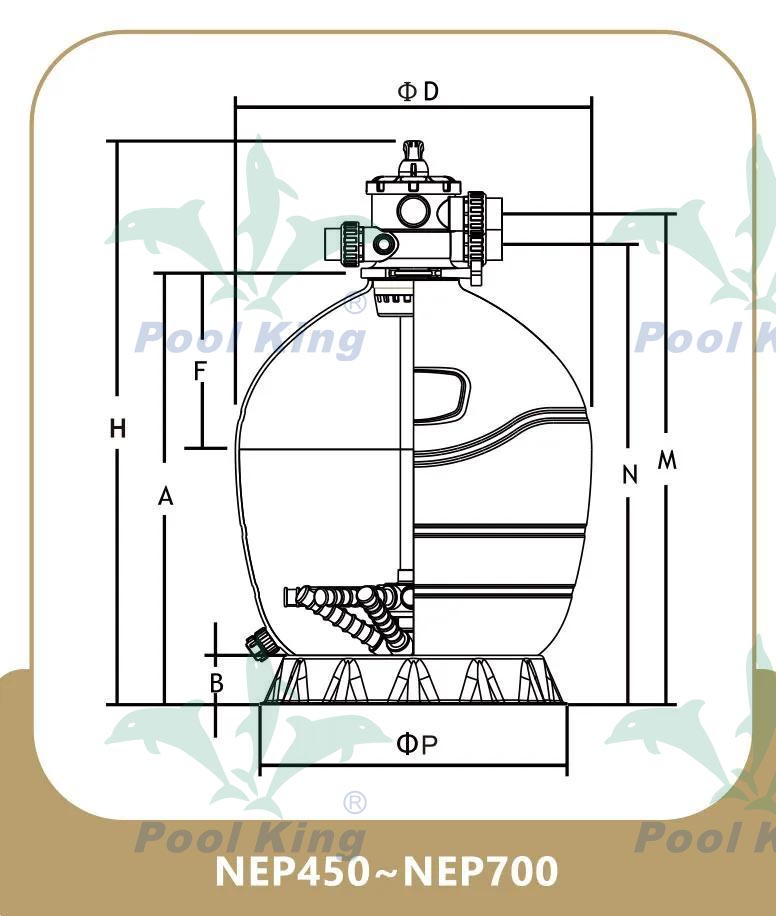

| Model | NEP450 | NEP500 | NEP650 | NEP700 |
| ØD(mm) | 425 | 500 | 600 | 650 |
H（mm） | 767 | 890 | 983 | 1028 |
| A（mm） | 526 | 650 | 743 | 787 |
| B（mm） | 75 | 75 | 75 | 95 |
| M（mm） | 635 | 758 | 850 | 895 |
| N（mm） | 579 | 702 | 795 | 839 |
| ØP(mm) | 390 | 390 | 390 | 565 |
| F（mm） | 195 | 236 | 285 | 319 |
