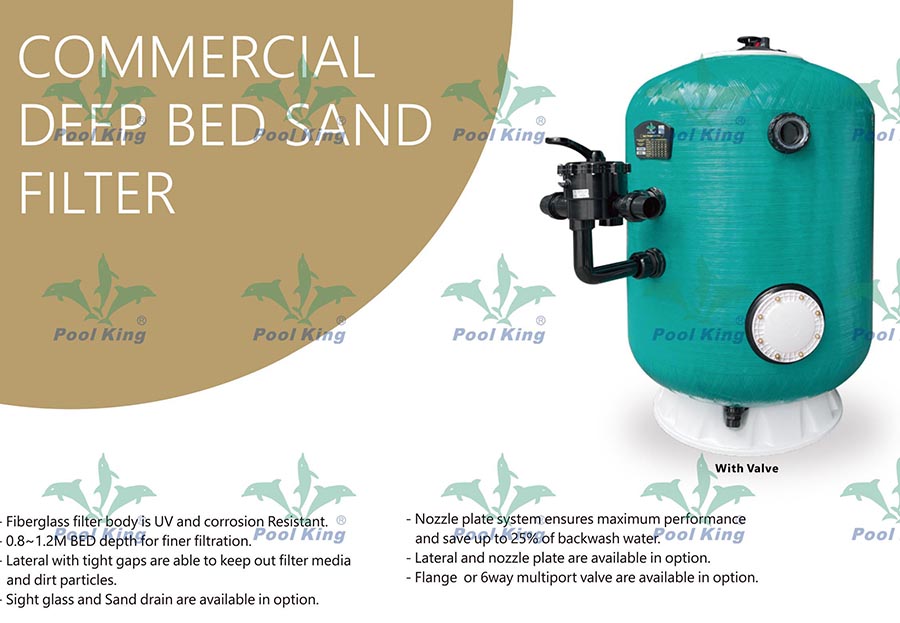

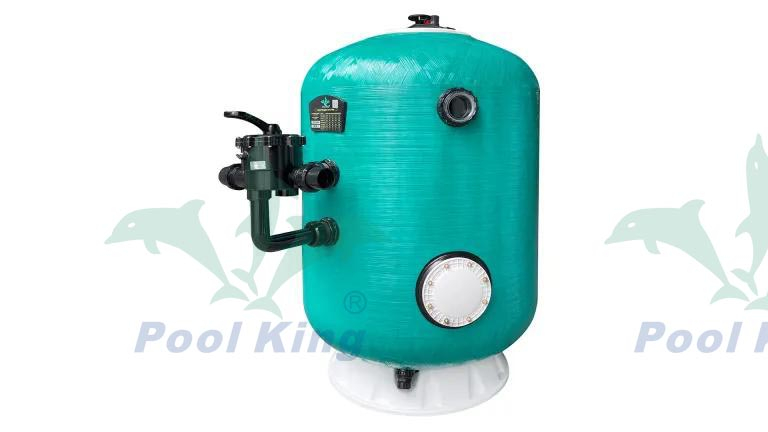

- Fiberglass filter body is UV and corrosion Resistant.
- 0.8~1.2M BED depth for finer filtration.
- Lateral with tight gaps are able to keep out filter media and dirt particles.
- Sight glass and Sand drain are available in option.
- Nozzle plate system ensures maximum performance and save up to 25% of backwash water.
- Lateral and nozzle plate are available in option. - Flange or 6way multiport valve are available in option.

Model | Filter Diameter (mm) | Filter Height(mm) | Design Flow(m³/h) | Filter Area(m²) | Connections(inch/mm) | Sand Weight(kg)0.5-0.8mm | Grave Weight(kg)1-2mm |
HK15800A | 800 | 1600 | 20.0 | 0.50 | 2"/63 | 455 | 170 |
HK15900A | 900 | 1600 | 25.6 | 0.64 | 2"/63 | 585 | 230 |
HK151000A | 1000 | 1600 | 31.6 | 0.79 | 2"/63 | 720 | 270 |
HK151200A | 1200 | 1600 | 40.0 | 1.13 | 2.5"/75 | 1030 | 450 |
HK151200A-2.5 | 1200 | 1600 | 45.2 | 1.13 | 2"/63 | 1130 | 450 |
HK20800A | 800 | 2100 | 15.0 | 0.50 | 2"/63 | 770 | 170 |
HK20900A | 900 | 2100 | 19.0 | 0.64 | 2"/63 | 990 | 230 |
HK201000A | 1000 | 2100 | 23.7 | 0.79 | 2"/63 | 1220 | 270 |
HK201200A | 1200 | 2100 | 30.0 | 1.13 | 2"/63 | 1740 | 450 |
HK201200A-2.5 | 1200 | 2100 | 33.9 | 1.13 | 2.5"/75 | 1740 | 450 |

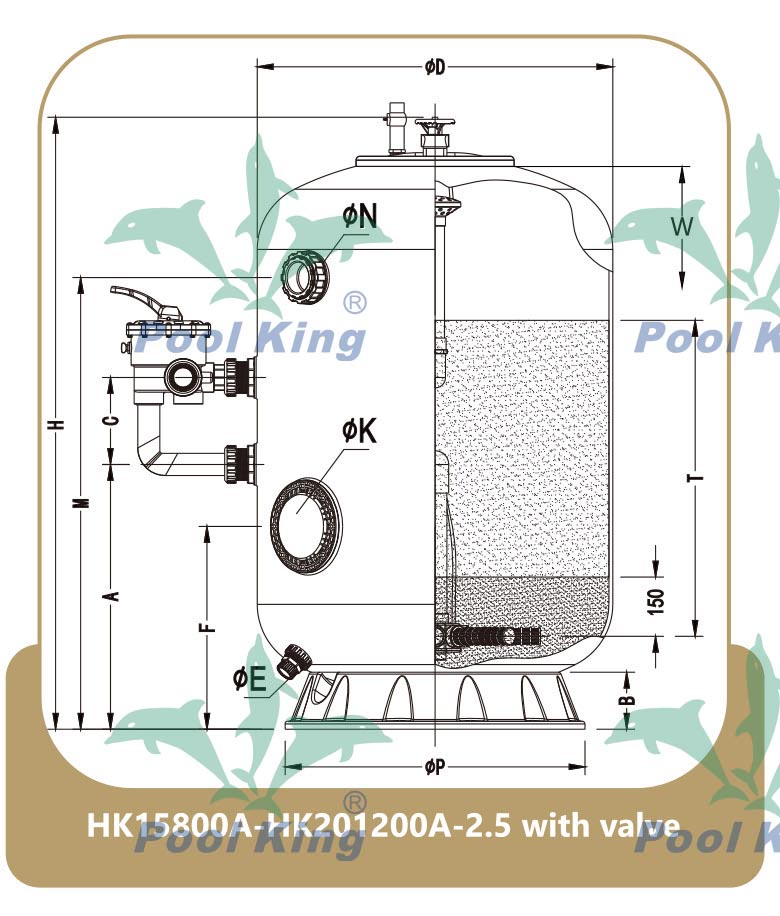

Model | HK15800A | HK15900A | HK151000A | HK151200A | HK151200A-2.5 | HK20800A | HK20900A | HK201000A
| HK201200A | HK201200A-2.5 |
ØD(mm) | 800 | 900 | 1000 | 1200 | 1200 | 800 | 900 | 1000 | 1200 | 1200 |
H(mm) | 1600 | 1600 | 1600 | 1600 | 1600 | 2100 | 2100 | 2100 | 2100 | 2100 |
A(mm) | 700 | 700 | 700 | 700 | 700 | 1000 | 1000 | 1000 | 1000 | 1000 |
B(mm) | 150 | 150 | 150 | 180 | 180 | 150 | 150 | 150 | 180 | 180 |
C(mm) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
ØE(mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
F(mm) | 520 | 520 | 520 | 600 | 600 | 520 | 520 | 520 | 600 | 600 |
ØK(mm) | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
M(mm) | 1120 | 1120 | 1120 | 1120 | 1120 | 1600 | 1600 | 1600 | 1600 | 1600 |
ØN(mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
ØP(mm)
| 790 | 790 | 790 | 1010 | 1010 | 790 | 790 | 790 | 1010 | 1010 |
T(mm) | 800 | 800 | 800 | 800 | 800 | 1200 | 1200 | 1200 | 1200 | 1200
|
W(mm) | 350 | 350 | 350 | 350 | 350 | 400 | 400 | 400 | 400 | 400 |

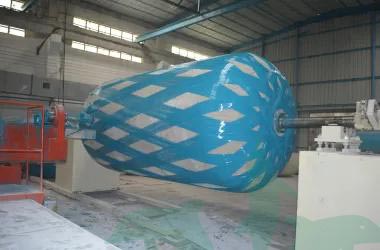

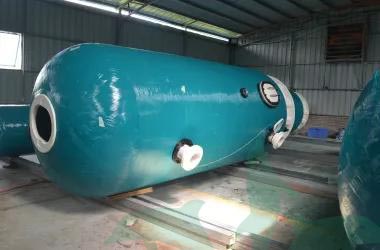

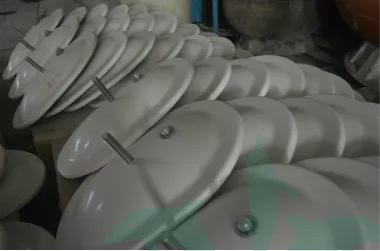

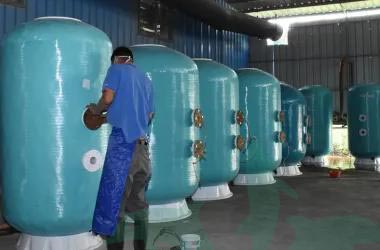

Workshop:

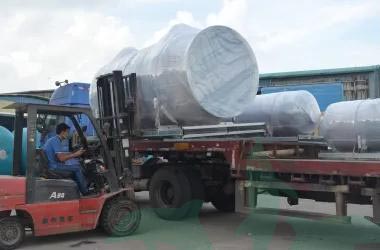

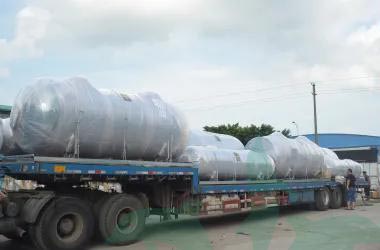

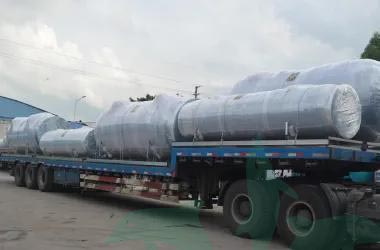

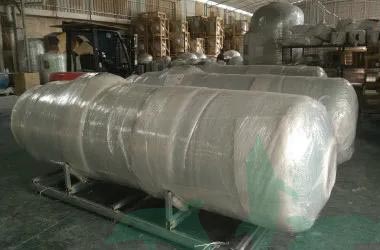

Transportation:
