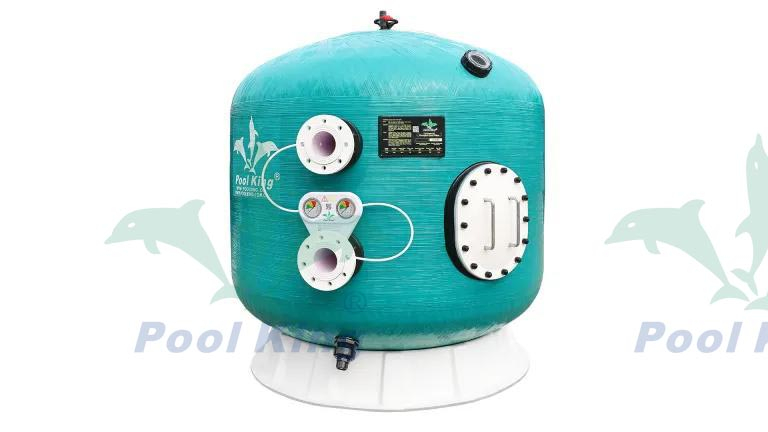

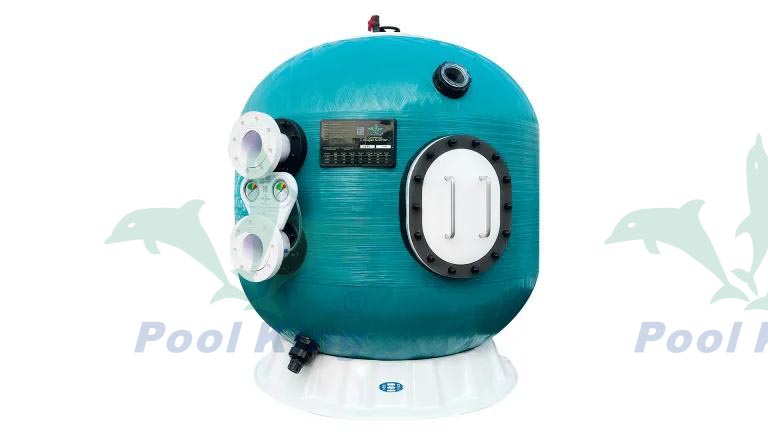

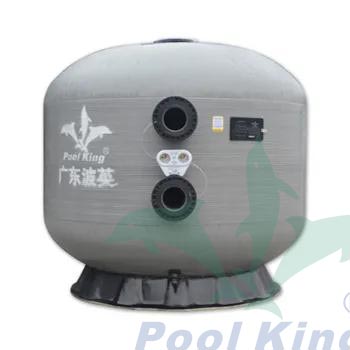

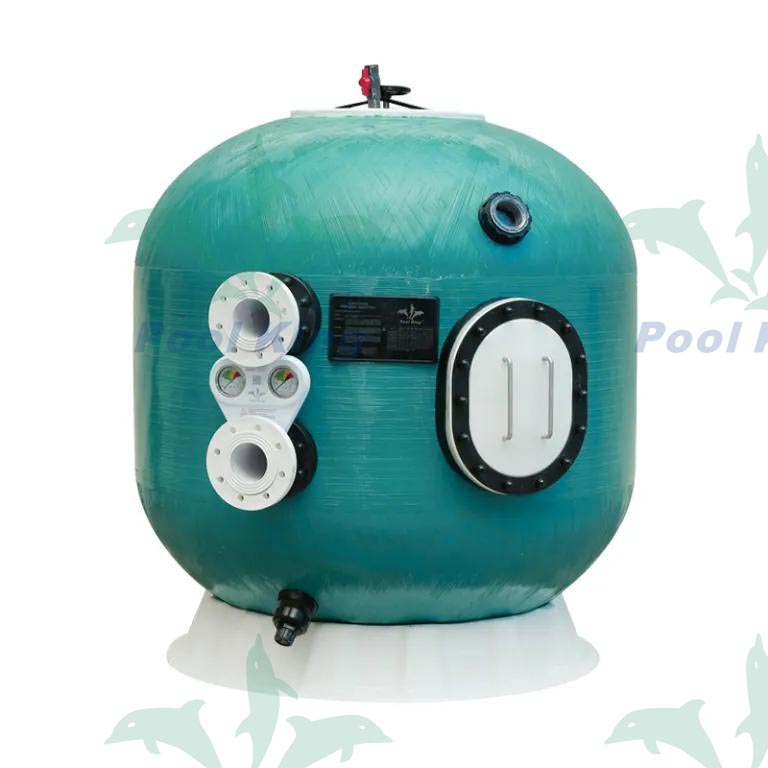

Commercial Sand Filter From For Olympic Pools

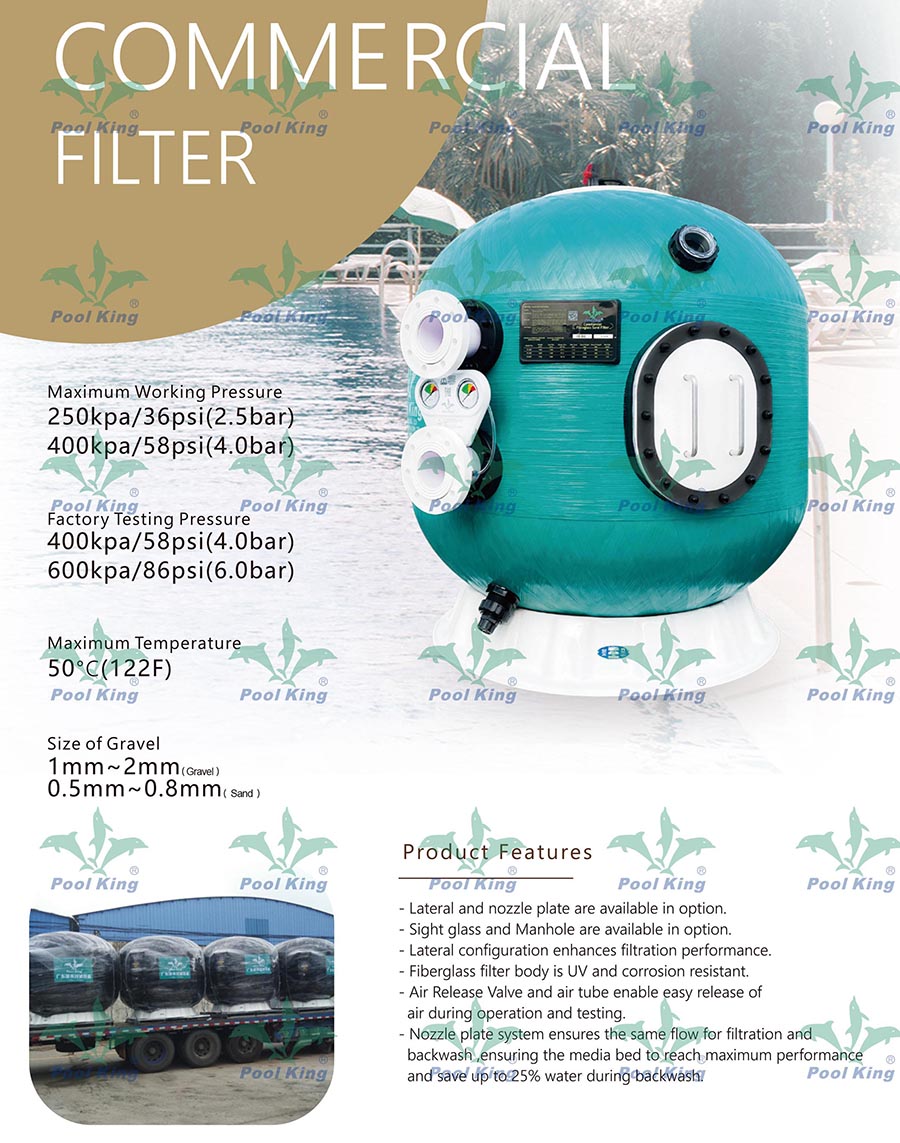

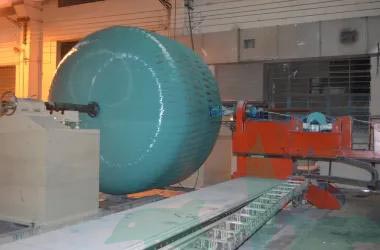

POOLKING ' s commercial filter was made by the latest in fiberglass winding technology . The design and the manufacturing process of the whole vessel , incorporation of non metallic fittings plus reinforced manhole openings with proprietary methods, is unique to Poolking . Poolking are the first to introduce the benefits of the new lateral system instead of the conventional lateral system forc ommercial filters . Poolking's new lateral configuration eliminates any " dead corner " by improving water flow distribution through the filter bed , which ensures maximum performance .
Another option is the nozzle plate system which allowws the introduction of pressurized air directly into the bottom of the filter media .Uniform introduction of air and water through the nozzple plate provides vigorous agitation and the filter media bed expansion required for an effective air/water backwash leading to reduced backwashing times and reduce volumes of water . The minimum water and energy like that save money for the swimming pool investment and operation.

1. Maximum working pressure: 250kPa/36psi/2.5bar or 400kPa/58psi/4.0bar.
2. Factory Testing Pressure: 400kPa/58psi/4.0bar or 600kPa/86psi/6.0bar.
3. Maximum Water Temperature: 50℃.
4. Size of Gravel: 1mm-2mm.
5. Size of Silica Sand: 0.5~0.8mm.


Availability:



Inquire Add to Basket

Model:
K

Commercial Sand Filter From For Olympic Pools Commercial Pool Equipment Eco Fibre Pool Filter Above Ground Pool Sand Filter Swimming Pool Supplies And Equipment Polyester And Fibreglass Filter Sand Filter

Product Description

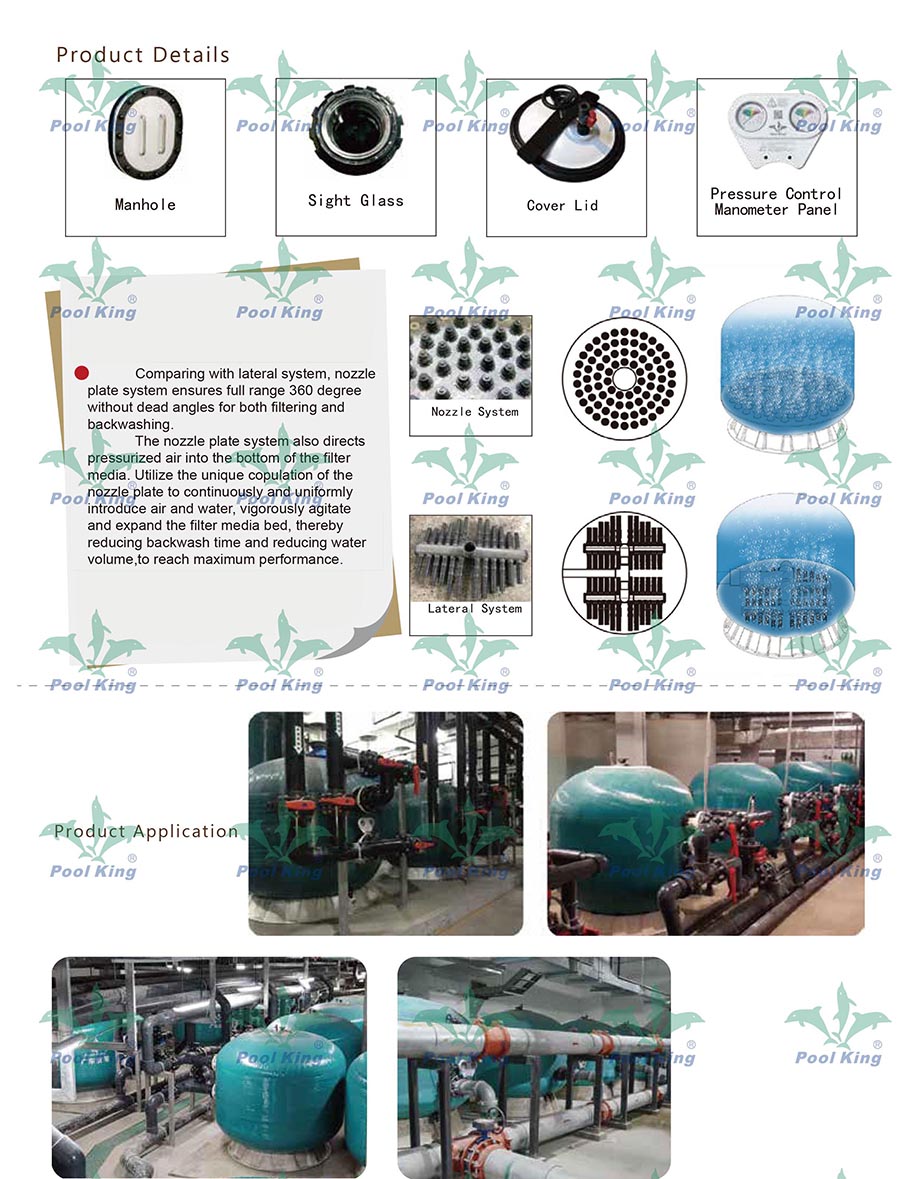

- Lateral and nozzle plate are available in option.

- Sight glass and Manhole are available in option.

- Lateral configuration enhances filtration performance.

- Fiberglass filter body is UV and corrosion resistant.

- Air Release Valve and air tube enable easy release of air during operation and testing.

- Nozzle plate system ensures the same flow for filtration and backwash ,ensuring the media bed to reach maximum performance and save up to 25% water during backwash.

K1200~K3000with lateral

Model	Filter Diameter（mm）	Filter Height （mm）	Flow rate（mm³/h/m²）	Inlet&Outlet De(mm)/inch	Design Flow（m³/h）	Filter Area（m²）	Sand Weight（kg）0.5-0.8mm	Grave Weight（kg）1-2mm
K1200	1200	1420	30	90/3"	34	1.13	750	300
			40	90/3"	45
			50	110/4"	57
K1400	1400	1670	30	90/3"	46	1.54	1200	500
			40	110/4"	61
			50	110/4"	77
K1600	1600	1750	30	110/4"	60	2.01	1850	30750
			40	160/6"	80
			50	160/6"	101
K1800	1800	1950	30	110/4"	76	2.54	2500	1050
			40	160/6"	101
			50	160/6"	127
K2000	2000	2130	30	160/6"	94	3.14	3300	1150
			40	160/6"	125
			50	160/6"	157
K2200	2200	2350	30	160/6"	114	3.80	4150	4170
			40	160/6"	152
			50	200/8"	190
K2300	2300	2350	30	160/6"	125	4.15	4900	1600
			40	200/8"	166
			50	200/8"	208
K2350	2350	2350	30	160/6"	130	4.34	5000	1800
			40	200/8"	175
			50	200/8"	217
K2500	2500	2450	30	160/6"	147	4.90	6000	2200
			40	200/8"	196
			50	200/8"	245
K3000	3000	2650	30	200/8"	212	7.07	8600	3300
			40	200/8"	282
			50	250/10"	354

k1400~k3000with nozzle

Model	Filter Diameter（mm）	Filter Height （mm）	Flow rate（mm³/h/m²）	Inlet&Outlet De(mm)/inch	Design Flow（m³/h）	Filter Area（m²）	Sand Weight（kg）0.5-0.8mm	Grave Weight（kg）1-2mm
K1400N	1420	1900	30	90/3"	46	1.54	1800	220
			40	110/4"	61
			50	110/4"	77
K1600N	1620	2000	30	110/4"	60	2.01	2300	300
			40	160/6"	80
			50	160/6"	101
K1800N	1830	2100	30	110/4"	76	2.54	2900	360
			40	160/6"	101
			50	160/6"	127
K2000N	2030	2200	30	160/6"	94	3.14	3600	440
			40	160/6"	125
			50	160/6"	157
K2300N	2300	2350	30	160/6"	125	4.15	4800	580
			40	200/8"	166
			50	200/8"	205
K2500N	2500	2450	30	160/6"	147	4.90	5700	680
			40	200/8"	196
			50	200/8"	245
K3000	3000	2650	30	200/8"	212	7.07	8250	980
			40	200/8"	282
			50	250/10"	354

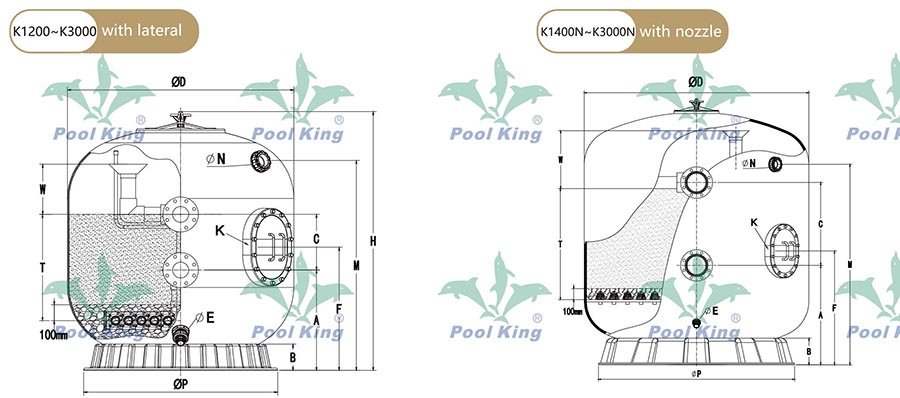

Model	ΦD（mm）	H（mm）	A（mm）	B（mm）	C（mm）	E（mm）	F（mm）	K（mm）	M（mm）	N（mm）	ΦP（mm）	T（mm）	W（mm）
K1200	1200	1422	560	180	340	60	740	180*180	1150	80	1010	600	300
K1400	1400	1670	650	190	350	60	800	300*400	1250	80	1240	700	300
K1600	1600	1750	680	215	450	60	870	300*400	1450	80	1450	800	320
K1800	1800	1950	730	215	550	60	91	300*400	1650	80	1610	850	320
K2000	2000	2130	800	240	550	60	1050	300*400	1700	80	1800	900	350
K2200	2200	2350	900	240	600	60	1070	300*400	1750	80	1800	1000	400
K2300	2300	2350	940	240	600	60	1070	300*400	1800	80	2010	1000	400
K2350	2350	2350	940	240	600	60	1070	300*400	1800	80	2010	1000	400
K2500	2500	2450	960	240	600	60	1100	300*400	1900	80	2010	1050	400
K3000	3000	2650	1020	350	600	60	1130	300*400	2150	80	2650	1100	450

Model	ΦD（mm）	H（mm）	A（mm）	B（mm）	C（mm）	E（mm）	F（mm）	K（mm）	M（mm）	N（mm）	ΦP（mm）	T（mm）	W（mm）
K1400N	1420	1900	700	190	550	40	800	300*400	1400	80	1240	1000	300
K1600N	1620	2000	810	215	550	40	870	300*400	1500	80	1450	1000	320
K1800N	1830	2100	850	215	550	40	980	300*400	1600	80	1610	1000	320
K2000N	2030	2200	900	240	550	40	1030	300*400	1650	80	1800	1000	350
K2300N	2300	2350	940	240	600	40	1070	300*400	1800	80	2010	1000	400
K2500N	2500	2400	960	240	600	40	1100	300*400	1900	80	2010	1000	400
K3000N	3000	2650	1020	350	600	40	1130	300*400	2150	80	2650	1000	400

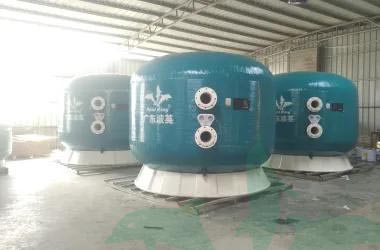

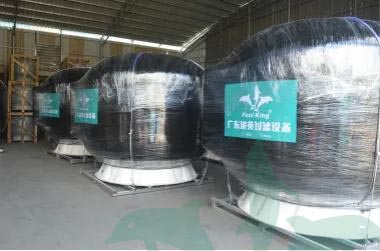

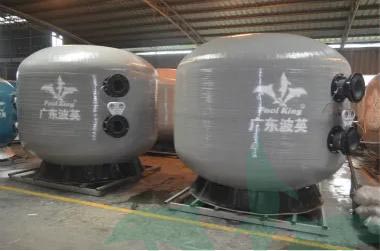

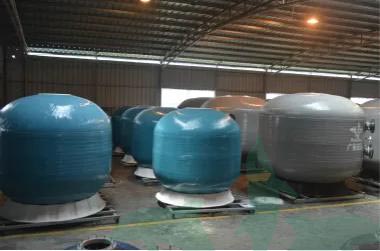

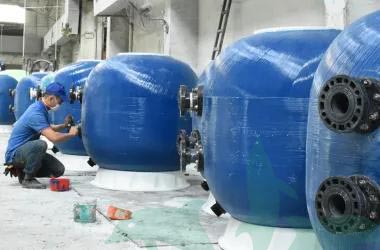

Workshop:

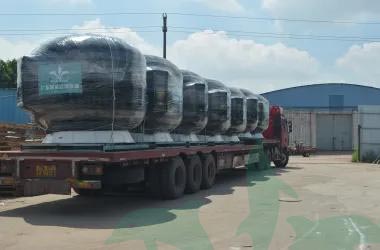

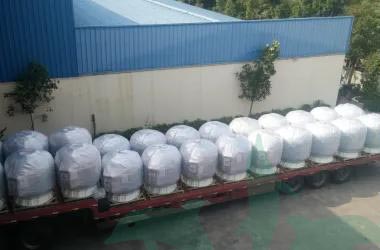

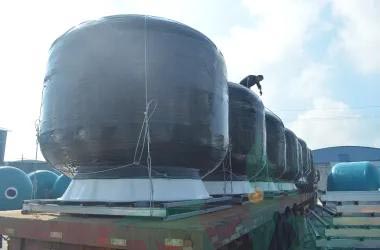

Transportation:
