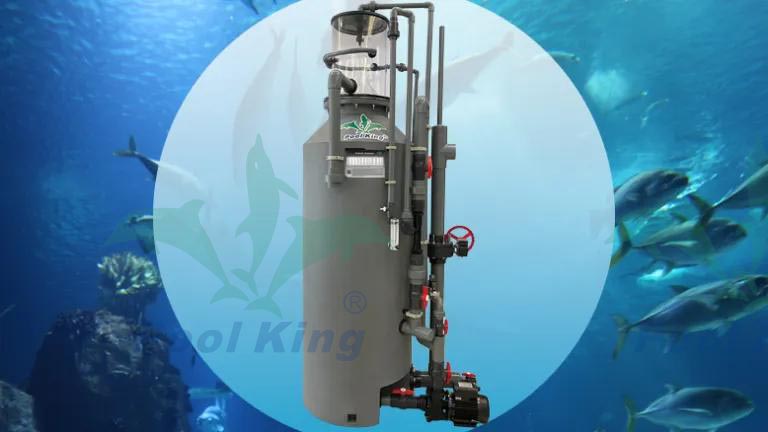

Aquarium Protein Skimmer

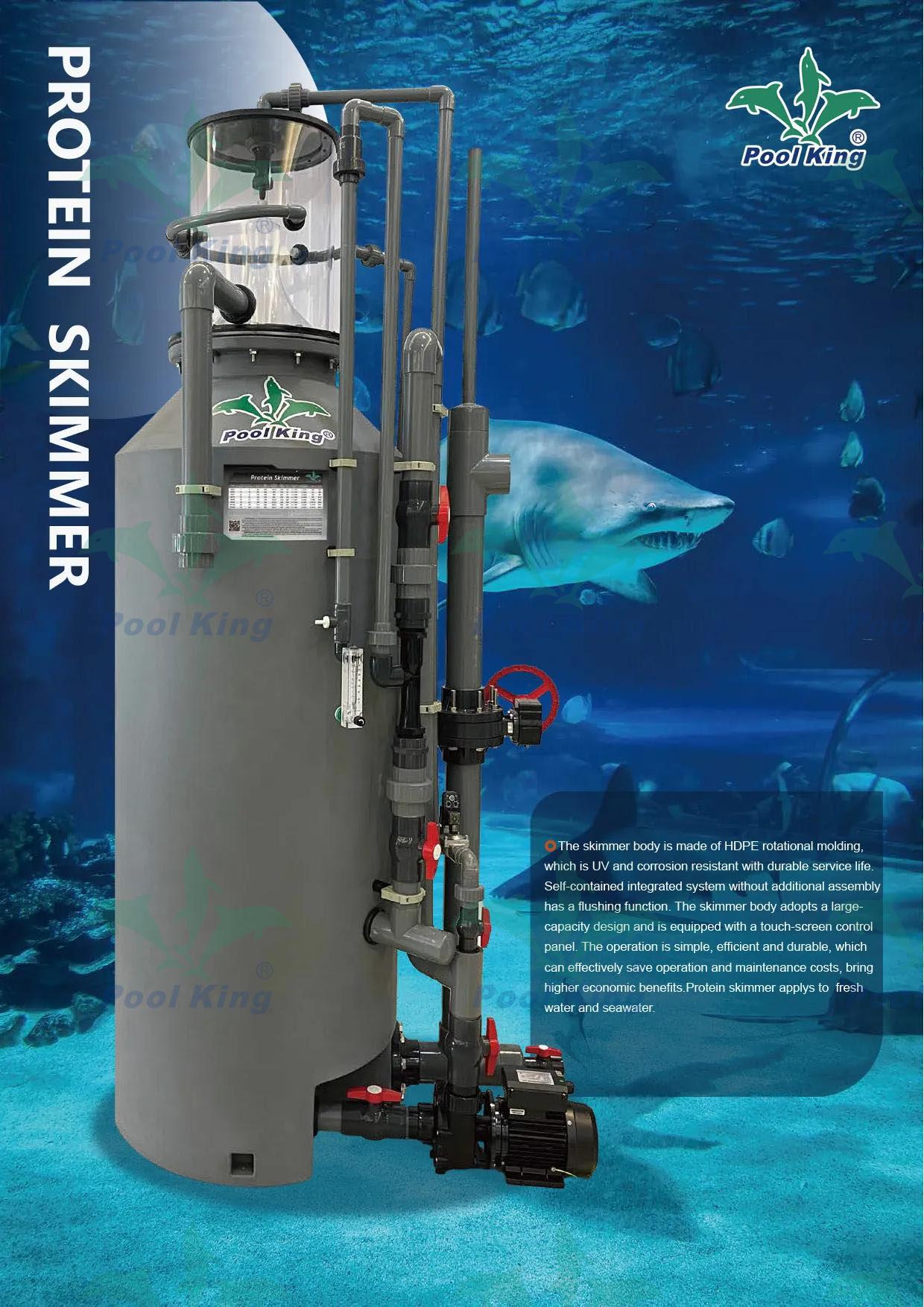

The skimmer body is made of HDPE rotational molding, which is UV and corrosion resistant with durable service life. Self-contained integrated system without additional assembly has a flushing function. The skimmer body adopts a largecapacity design and is equipped with a touch-screen control panel. The operation is simple, efficient and durable, which can effectively save operation and maintenance costs, bring higher economic benefits.Protein skimmer applys to fresh water and seawater.
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Aquarium Protein Skimmer Protein Skimmer Protein Skimmer Saltwater Aquarium Surface Skimmer Best Protein Skimmer Saltwater Fish Tank Protein Skimmer Bubble Magus Skimmer Protein Skimmer Aquarium Skimmer Surface Aquarium Skimmer In Aquarium

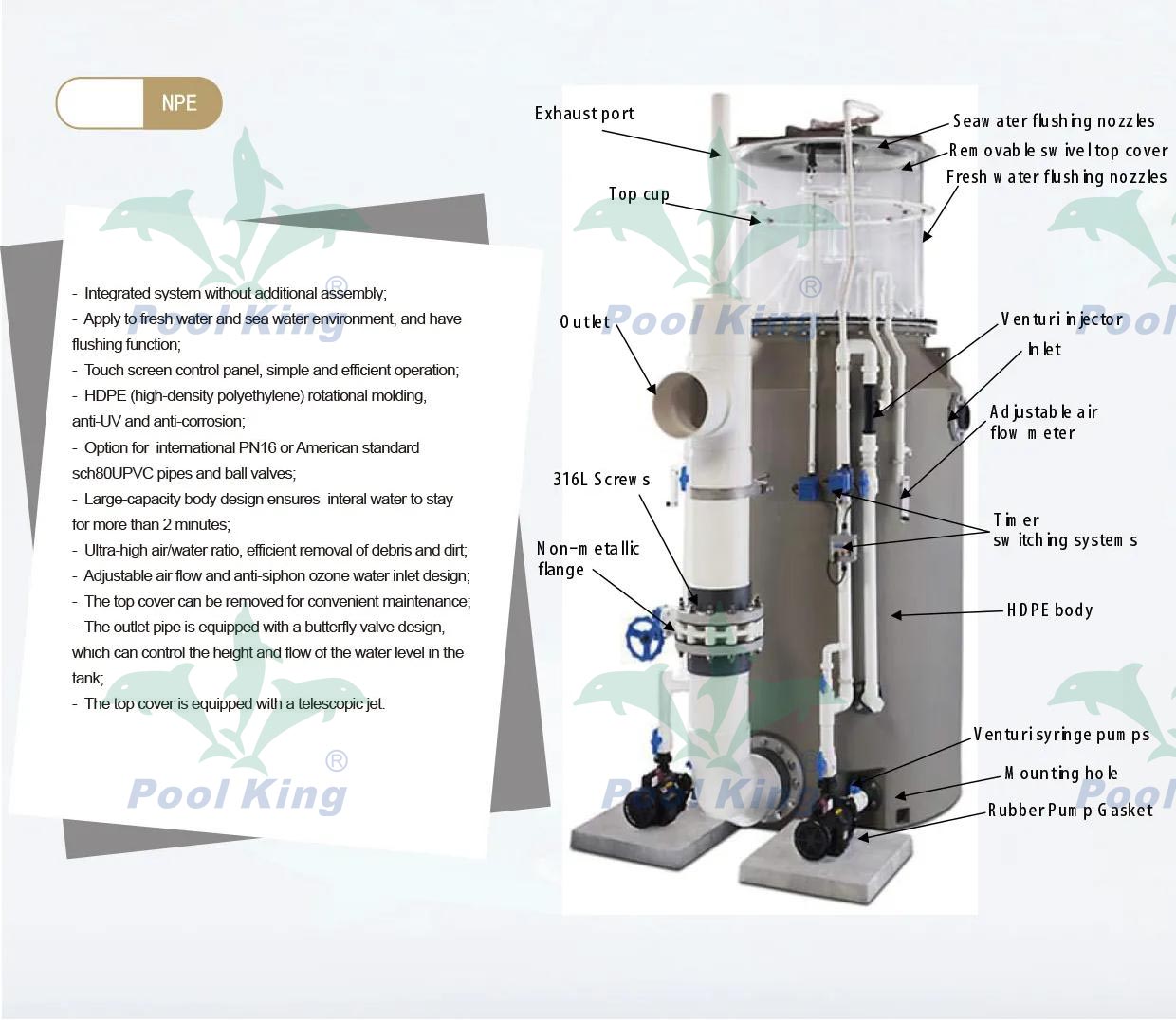

Product Description

- Integrated system without additional assembly

- Apply to fresh water and sea water environment, and have flushing function

- Touch screen control panel, simple and efficient operation

- HDPE (high-density polyethylene) rotational molding, anti-UV and anti-corrosion; - Option for international PN16 or American standard sch80UPVC pipes and ball valves

- Large-capacity body design ensures interal water to stay for more than 2 minutes

- Ultra-high air/water ratio, efficient removal of debris and dirt

- Adjustable air flow and anti-siphon ozone water inlet design; - The top cover can be removed for convenient maintenance

- The outlet pipe is equipped with a butterfly valve design, which can control the height and flow of the water level in the tank

- The top cover is equipped with a telescopic jet.


Aquarium Protein SkimmerAquarium Protein Skimmer


Technical Parameters

Model Max Flow (m³/h) Diameter(mm) Body Height(mm) Length of water column (mm) Total Height (mm) Volume (L) Venturi Qty (pcs) Backwash/ Electromagnetic valves(pcs) Inlet Outlet
@2min @1.5min
NPE25 7 9 420 1700 1701.8 2134 226 1 X 1.1KW 2 X 50W Ø50 Ø63
NPE50 14 18 550 1900 1905 2515 452 1 X 1.1KW 2 X 50W Ø63 Ø90
NPE75 24 32 730 1900 1905 2591 797 1 X 1.5KW 2 X 50W Ø63 Ø90
NPE150 40 54 950 1900 1905 2565 1350 1 X 1.5KW 2 X 50W Ø90 Ø110
NPE300 84 112 1350 1950 1955.8 2794 2800 1 X 1.5KW 2 X 50W 2 X Ø90 Ø160
NPE600 166 222 1650 2440 2590.8 3658 5540 2X 1.5KW 2 X 50W 2 X Ø110 Ø225
NPE1000 282 376 2134 2440 2590.8 3658 9407 4 X 1.5KW 2 X 50W 2 X Ø160 Ø315
NPE2000 344 458 2134 3050 3200.4 4267 11445 4 X 1.5KW 2 X 50W 2 X Ø225 Ø400
