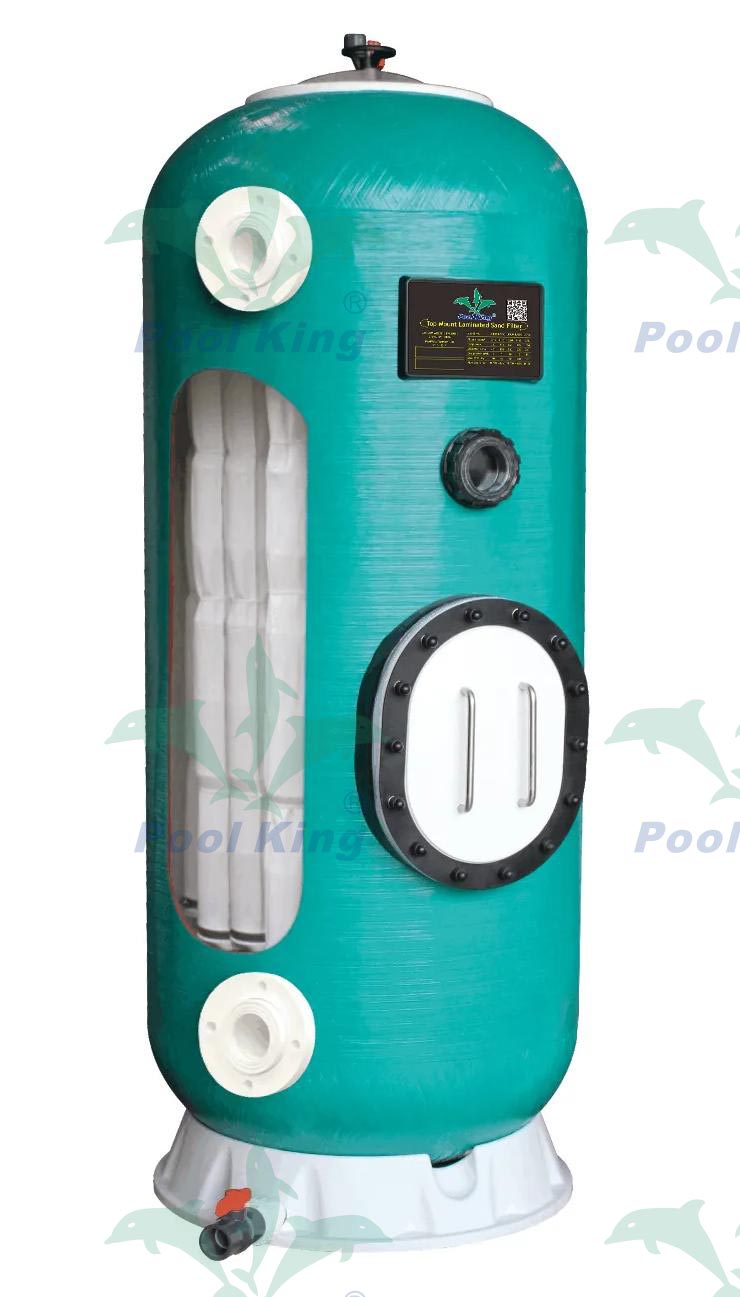

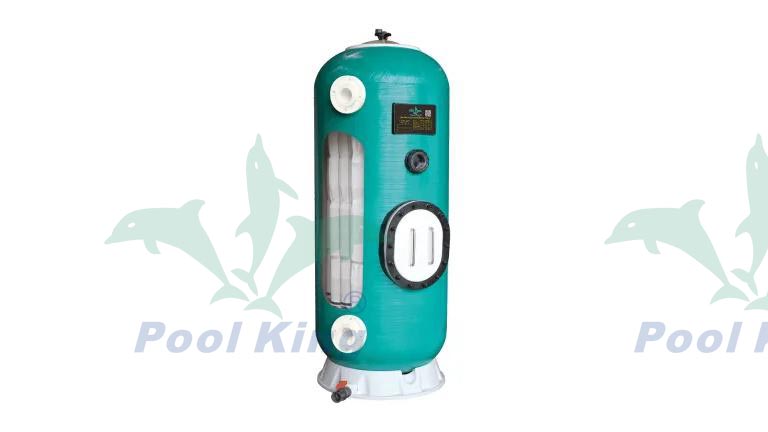

DE
- DE filter is the most effective type than other filter.
- DE filter can be worked about two weeks before backwashing.
- Large-capacity filter rab provide maximum filter surface area for grater dirt-trapping capacity and longer periods between cleaning.
- Unique internal filter rod ensures optimum filtration and backwashing efficiency.
- Filter rab should be cleaned manually at last once per season.
- High filtering precision of D.E power to remove 1~2μm microorganism. The turbidity is about 0.1NTU after filtration.
| Model | Filter Diameter （mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area （m²） | Connections（inch/mm） | Required D.E（kg） | φD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | E（mm） | F（mm） | K（mm） | M（mm） | φP（mm） |
| DE800 | 800 | 2100 | 24 | 9.40 | 90 | 5 | 800 | 2100 | 400 | 150 | 1300 | 50 | 900 | 300*400 | 1350 | 790 |
| DE900 | 900 | 2100 | 55 | 11.00 | 90 | 6 | 900 | 2100 | 400 | 150 | 1300 | 50 | 900 | 300*400 | 1350 | 790 |
| DE1000 | 1000 | 2100 | 75 | 15.00 | 110 | 8 | 1000 | 2100 | 400 | 150 | 1300 | 50 | 900 | 300*400 | 1350 | 790 |
| DE1200 | 1200 | 2300 | 117 | 23.40 | 110 | 13 | 1200 | 2300 | 500 | 180 | - | 50 | 900 | 300*400 | 1400 | 1010 |
| DE1400 | 1400 | 2350 | 163 | 32.60 | 160 | 19 | 1400 | 2350 | 600 | 165 | - | 63 | 900 | 300*400 | 1400 | 1215 |
| DE1600 | 1600 | 2350 | 203 | 40.60 | 160 | 22 | 1600 | 2350 | 600 | 215 | - | 63 | 900 | 300*400 | 1400 | 1450 |
| DE1800 | 1800 | 2350 | 267 | 53.40 | 200 | 30 | 1800 | 2450 | 650 | 215 | - | 63 | 1000 | 300*400 | 1450 | 1610 |
| Model | Filter Diameter（mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area （m²） | Connections（inch/mm） | Required D.E （kg） | φD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | φP（mm） |
| DE650 | 635 | 1310 | 18.0 | 3.64 | 2"/63 | 2.2 | 635 | 1310 | 700 | 95 | 220 | 565 |
| DE700 | 700 | 1340 | 25.0 | 5.07 | 2"/63 | 3.0 | 700 | 1340 | 730 | 95 | 220 | 565 |
 |  |  |
 |  |  |
 |  |  |
