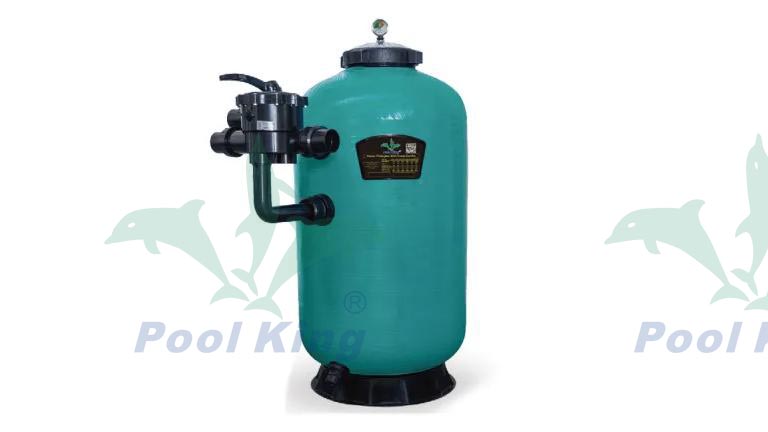

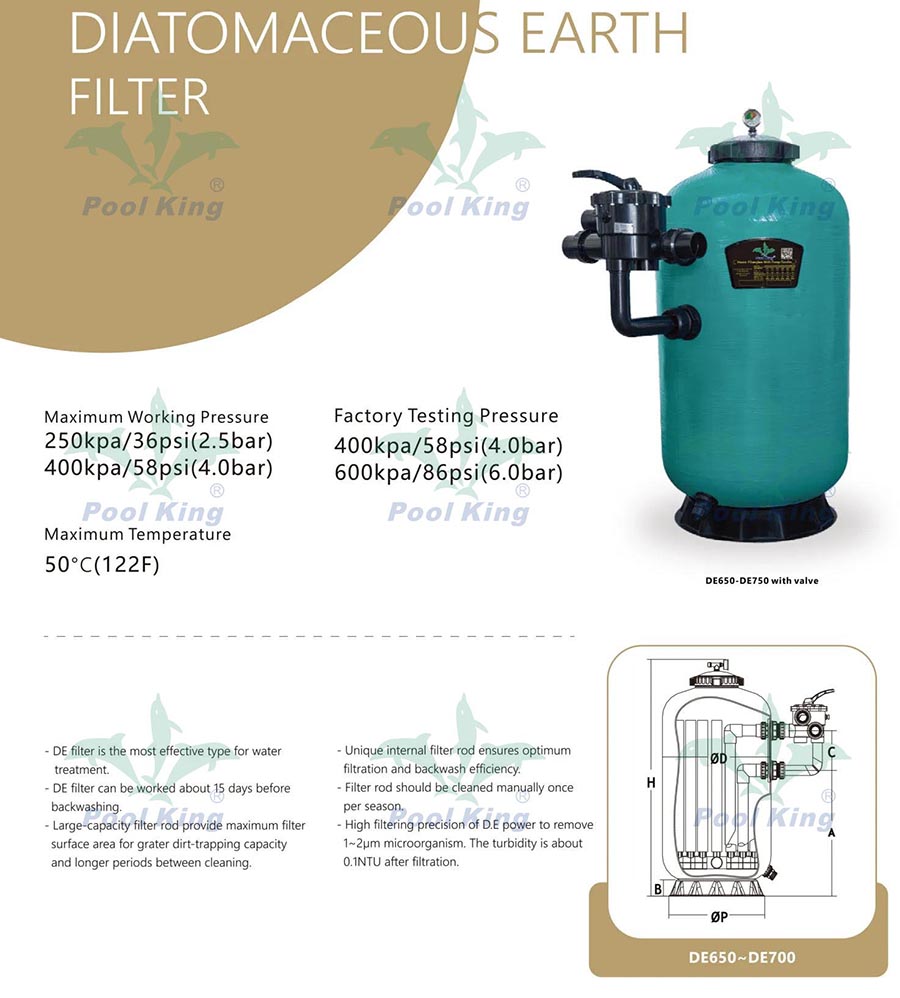

DE
- DE filter is the most effective type than other filter.
- DE filter can be worked about two weeks before backwashing.
- Large-capacity filter rab provide maximum filter surface area for grater dirt-trapping capacity and longer periods between cleaning.
- Unique internal filter rod ensures optimum filtration and backwashing efficiency.
- Filter rab should be cleaned manually at last once per season.
- High filtering precision of D.E power to remove 1~2μm microorganism. The turbidity is about 0.1NTU after filtration.
| Model | Filter Diameter（mm） | Filter Height（mm） | Design Flow（m³/h） | Filter Area （m²） | Connections（inch/mm） | Required D.E （kg） | φD（mm） | H（mm） | A（mm） | B（mm） | C（mm） | φP（mm） |
| DE650 | 635 | 1310 | 18.0 | 3.64 | 2"/63 | 2.2 | 635 | 1310 | 700 | 95 | 220 | 565 |
| DE700 | 700 | 1340 | 25.0 | 5.07 | 2"/63 | 3.0 | 700 | 1340 | 730 | 95 | 220 | 565 |
 |  |  |
 |  |  |
 |  |  |
