Pool inlet fittings are a crucial yet often overlooked component of a swimming pool's circulation and filtration system. Proper placement of these fittings significantly impacts water circulation efficiency, filtration effectiveness, and overall pool water quality. This article explains where to put pool inlet fittings, shares detailed installation tips, discusses common configurations, and provides troubleshooting advice to ensure your pool operates at its best.

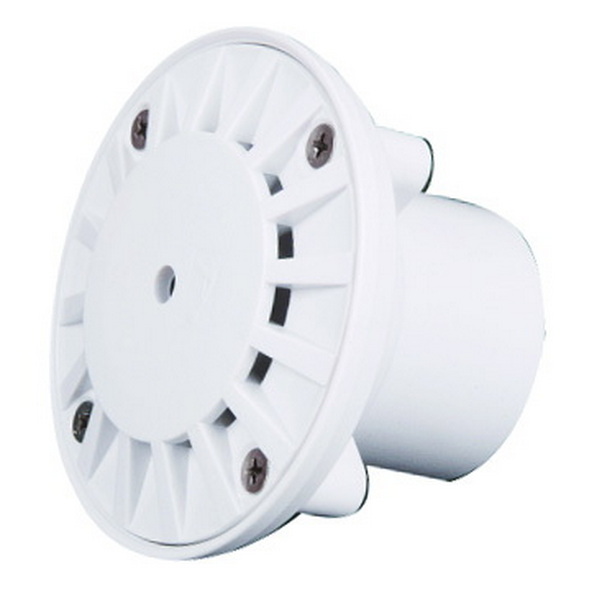

Pool inlet fittings, also known as return inlets or return jets, are points through which filtered water is returned back into the pool after passing through the pump and filtration system. These fittings are typically installed through the pool wall or floor and connected to piping linked to the filtration unit.
- Function: Pool inlets provide water circulation, helping to distribute chemicals evenly and prevent stagnant zones.
- Types: Common types include wall-mounted inlets, floor inlets, adjustable nozzles, and directional jets.
Correct placement of pool inlet fittings is vital for multiple reasons:
- Efficient Water Circulation: Even water flow prevents dead spots where algae and debris accumulate and allows the filtration system to operate optimally.
- Effective Filtration: Strategic inlet positioning ensures that the filtration system cleans all areas of the pool, minimizing maintenance needs.
- Maintaining Water Chemistry: A well-distributed flow ensures consistent delivery of chlorine and other chemical treatments, keeping water safe and clear.
- Comfort and Safety: Well-placed fittings avoid creating uncomfortable water currents that could interfere with swimming or relaxation.
Most pool inlet fittings are mounted on the pool walls. Here are key considerations for wall placement:

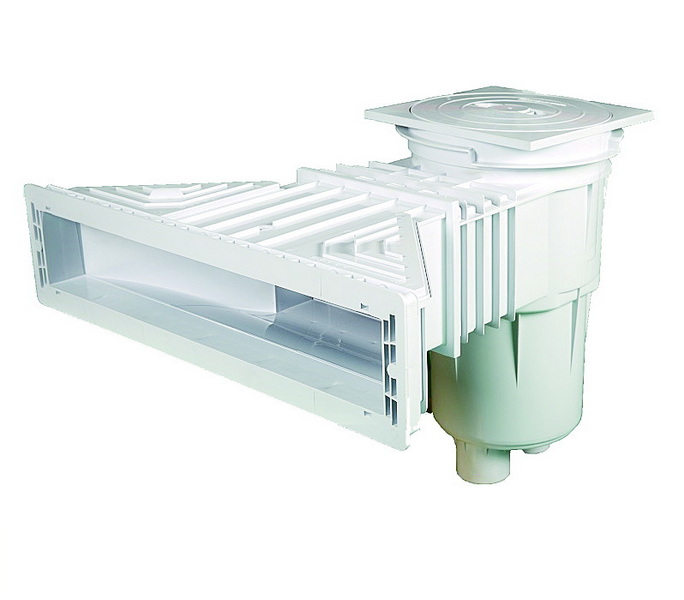

- Opposite Side From Skimmers: Placing return inlets across from skimmers promotes proper water flow across the entire pool surface, pulling debris toward the skimmer for removal.
- Lower Half of the Pool Wall: Position inlets approximately 12 to 18 inches below the waterline. This depth aids circulation without causing surface turbulence.
- Avoid Swimming Lanes: Prevent installation directly in swim lanes or play areas to reduce swimmer discomfort and prevent strong currents.
- Even Spacing: Multiple inlets should be spaced evenly, generally 6 to 10 feet apart, to cover all pool sections effectively.
For pools with complex shapes or larger volumes, floor-mounted return inlets are often installed:
- Floor returns help circulate water at the bottom of the pool, preventing sediment accumulation and improving water quality.
- These are typically used in conjunction with wall-mounted inlets for comprehensive water movement.
The size and shape of your pool greatly affect how many inlet fittings are necessary and where they should be located:
- Small Pools: A couple of inlets positioned opposite the skimmers are sufficient.
- Large or Irregular Pools: Require multiple inlets placed strategically along walls and floors to maintain consistent water movement.
- Geometric Pools: Straight edges and corners benefit from wall inlets near corners to reduce dead zones.
- Freeform Pools: Placement should be customized to the pool's unique shape, often requiring professional design input.
If your pool has water features such as spas, fountains, or waterfalls, inlet fitting placement should complement these:
- Avoid positioning inlets directly beneath or near fountains or spillways to prevent turbulence.
- Consider additional inlets within spa areas to maintain circulation and heat distribution.
- Ensure return lines serving water features do not interfere with main pool circulation.
To install pool inlet fittings correctly, prepare the following:
- Inlet fitting kit (faceplate, gasket, locknut, inlet body)
- PVC piping and connectors
- Pipe cutter and wrench
- Screwdriver and drill
- Waterproof adhesive or sealant
1. Mark the Location: Accurately measure from the waterline and structural reference points to mark fitting positions on the pool wall or floor.
2. Cut the Hole: Use a hole saw or compatible tool to create a clean hole sized for the fitting (commonly 2 to 3 inches in diameter).
3. Insert the Fitting Body: Insert inlet fitting from inside the pool wall, making sure the flange is flush against the surface.
4. Secure the Fitting: Use the locknut and gasket to firmly secure the fitting body from outside the pool wall, applying sealant to prevent leaks.
5. Attach the Faceplate: Inside the pool, attach the faceplate to cover the fitting opening securely.
6. Connect Plumbing: Connect PVC pipes from the inlet to the filtration return line, ensuring all joints are secure and leak-free.
7. Test for Leaks and Flow: Upon completion, test the system for leaks and verify proper water flow direction and pressure.
Optimizing water circulation ensures maximum pool cleanliness and comfort:
- Use Adjustable Nozzles: These allow directing water flow towards pool corners and deeper areas, improving overall circulation.
- Balance Number of Inlets to Skimmers: An adequate ratio helps maintain efficient water turnover and surface cleaning.
- Regularly Assess Water Movement: Check for dead zones where water remains still and adjust fittings or add inlets if needed.
- Include Floor Returns in Large Pools: These help prevent sediment buildup in deep areas.
- Consult Professionals: For complex pool shapes or large projects, professional engineering advice ensures the best inlet layout.
Many pool owners and installers make errors that impact circulation efficiency or cause damage:
- Placing Inlets Too Close to Skimmers: This short-circuits water flow, causing poor surface debris removal.
- Positioning Inlets Above Waterline: This can suck air into the pump, reducing system pressure and potentially damaging equipment.
- Over-tightening Fittings: Excessive force can crack pool walls or cause leaks.
- Ignoring Swimmer Traffic Areas: Installing inlets in high-activity zones may cause discomfort or safety risks.
- Neglecting Maintenance Access: Ensure fittings are accessible for cleaning and repairs.
Proper upkeep prolongs inlet fitting life and maintains pool performance:
- Regular Inspection: Check for debris or algae clogging the fittings. Remove blockages promptly.
- Faceplate Care: Inspect screws and faceplates for corrosion and tighten or replace as needed.
- Monitor Water Flow: A drop in flow rate can indicate partial blockages or leaks.
- Replace Gaskets Annually: Prevent leaks by refreshing worn seals.
- Winterize: In cold climates, drain water and cover fittings to avoid freeze damage.
Proper placement and installation of pool inlet fittings are essential to efficient pool operation, optimal water clarity, and swimmer comfort. By positioning fittings on the lower half of the pool walls opposite skimmers and considering floor returns in larger or complex pools, you ensure consistent water circulation and filtration. Following installation best practices, avoiding common errors, and maintaining fittings regularly will enhance your swimming pool's performance and longevity. Whether outfitting a new pool or upgrading an existing system, meticulous attention to inlet fittings pays dividends in water quality and enjoyment.
Pool inlet fittings should be positioned on the lower half of the pool walls, approximately 12 to 18 inches below the waterline, and opposite from the skimmers to promote optimal water circulation.
Yes, floor-mounted inlets are typically used in larger or irregularly shaped pools to improve water circulation at the bottom, preventing sediment buildup.
Tools include a hole saw for cutting, pipe cutter, wrenches, screwdriver, sealants, and the inlet fitting kit.
Avoid placing fittings above the waterline, too close to skimmers, overtightening locknuts, or installing directly in swimmer zones causing discomfort.
Inspect fittings at least quarterly for clogging, corrosion, or leaks, and replace gaskets annually to maintain optimal performance.
