Variable speed pool pumps represent a major advancement in pool maintenance technology, offering significant energy savings, quieter operation, and highly customizable performance. For pool owners and operators, understanding how to program these pumps effectively is vital for maximizing efficiency, reducing energy costs, and maintaining pristine water quality. This article provides a comprehensive, step-by-step guide to programming your variable speed pool pump, enriched with practical tips, scheduling examples, and troubleshooting advice to optimize pool pump performance all year round.

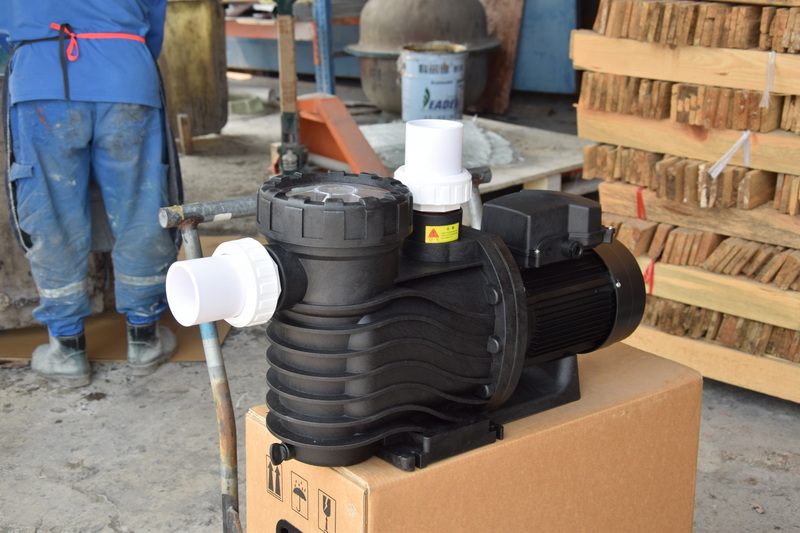

A variable speed pool pump is a sophisticated device that allows precise control over the motor speed, adjusting RPM (revolutions per minute) to meet diverse pool circulation and filtration needs. Unlike traditional single-speed or dual-speed pumps operating at fixed speeds, a variable speed pump adapts flow rates to match usage requirements, leading to major reductions in electricity consumption.
These pumps often use advanced permanent magnet motors (similar technology found in hybrid cars) resulting in increased efficiency, quieter operation, and longer lifespan. The ability to tailor pump speed reduces wear and tear and delivers ideal water turnover and filtration.
- Maximized Energy Efficiency: Running the pump at lower speeds during non-peak times dramatically cuts power use, often reducing energy consumption by up to 80% compared to older pumps.
- Cost Savings: Reduced energy use translates into substantial savings on electricity bills, often hundreds of dollars per season.
- Extended Equipment Longevity: Lower operational speeds minimize mechanical stress on motors and plumbing, extending pump life and reducing maintenance costs.
- Improved Water Quality: Customized schedules ensure steady circulation, enhancing filtration effectiveness and maintaining sparkling clean water.
- Quieter Operation: Lower speeds reduce noise levels, improving poolside comfort and ambiance.
Begin by setting the local time on the pump's digital controller. Accurate time settings ensure your scheduled programs run as intended throughout the day and night. Most pumps display time in 24-hour format and allow easy adjustment via navigation buttons on the control panel.
Familiarize yourself with your pump's speed presets. Typically, variable speed pumps offer 3 to 4 customizable speed settings:
- Speed 1: Low speed (e.g., 1200-1750 RPM) for baseline filtration or nighttime operation.
- Speed 2: Medium speed (e.g., 2000-2500 RPM) for general circulation.
- Speed 3: Higher speed (e.g., 3000-3200 RPM) for pool cleaning or water feature operation.
- Speed 4: Maximum speed (up to 4000 RPM) for quick cleaning and pump priming.
You can adjust these RPM values in the settings menu to suit your pool's size and plumbing specifications.
Navigate to the speed settings section on your pump controller. Customize each speed level's RPM according to your pool's needs—for example, setting Speed 1 at 1500 RPM and Speed 4 at 4000 RPM for maximum flow during cleaning. Save your settings after adjustment.
Most variable speed pumps allow programming multiple schedules per day, specifying start/stop times and speed levels. A common schedule might be:
- Morning Cleaning: Speed 4 from 8:00 AM to 10:00 AM
- Daytime Circulation: Speed 2 from 10:00 AM to 4:00 PM
- Evening Filtration: Speed 1 from 4:00 PM to 8:00 PM
- Nighttime Slow Circulation: Speed 1 or off from 8:00 PM to 8:00 AM
Avoid overlapping schedule times. Input the desired times via the controller's timer menu, ensuring each program period is saved properly.
Some pumps provide a 'prime' function to operate the motor at high speed for a short period to ensure proper water flow, especially after shutdowns. This usually runs for 5-10 minutes at a high RPM before reverting to scheduled speeds. Check your pump manual to configure this feature if needed.
After setting your programs, monitor pool circulation, water clarity, and energy usage. Refine RPMs and schedule periods based on actual performance and seasonal changes. For example, longer run times may be needed during heavy pool use or hotter months.
The turnover rate is the time required to circulate and filter the entire pool volume once, typically 6 to 8 hours. Calculate flow rate (GPH) by dividing pool volume (gallons) by desired turnover time. Program pump speeds and run times accordingly to meet this target efficiently.
Tasks like vacuuming, backwashing filters, and operating pool heaters require higher flow rates. Run higher speeds (Speed 3 or 4) during cleaning cycles, typically 2 to 4 hours daily for optimal performance.
Most of the pump runtime can be at low RPM to maintain water clarity with minimal energy use. Running 18-22 hours per day at low speed achieves good filtration without excess cost.
Schedule longer run times during utility off-peak hours if your electricity provider offers time-of-use rates. This can further reduce operational costs.
Rather than switching off the pump to save energy, it is generally better to run it continuously at a low speed. Maintaining constant water circulation improves water quality and reduces wear compared to frequent starts and stops.
The Pump Affinity Law explains that power consumption changes non-linearly with speed reductions. For example, reducing motor speed by 50% cuts flow rate in half but reduces energy use to approximately 1/8th. This explains how variable speed pumps save so much energy compared to fixed-speed pumps that often run full speed unnecessarily.
Additionally, maintaining a lower total dynamic head (less resistance in plumbing through wider pipes or sweep elbows) enhances the pump's efficiency and reduces energy consumption further.
By programmatically matching pump speed and runtime to actual pool needs, users can optimize energy use and maximize return on investment. Efficiency studies report savings of hundreds of dollars annually for typical residential pools.
- Pump Won't Start or Prime Properly: Ensure the pump has power, check for air leaks or clogged plumbing. Use prime function or high speed briefly to help start water flow.
- Schedule Settings Not Saving: Confirm proper menu operation and save commands. If repeated errors occur, perform a controller reset or consult the manual.
- Poor Water Quality: Increase runtimes or speed for filtration periods. Check chemical balance and clean filters regularly.
- Excessive Noise: Verify stable pump installation, inspect bearings, and check for misalignments or debris in impeller.
- Overlapping Timers Error: Adjust schedule to avoid concurrent timer periods; most controllers prohibit overlaps.
| Schedule Period | Speed Level | RPM | Start Time | End Time | Use Case |
|---|---|---|---|---|---|
| Morning Cleaning | Speed 4 | 3500-4000 | 08:00 AM | 10:00 AM | Vacuuming and chemical dispersion |
| Daytime Circulation | Speed 2 | 2000-2500 | 10:00 AM | 04:00 PM | Regular pool circulation |
| Evening Filtration | Speed 1 | 1200-1750 | 04:00 PM | 08:00 PM | Quiet filtration and filtration maintenance |
| Nighttime Circulation | Speed 1 | 1200-1500 | 08:00 PM | 08:00 AM | Energy-efficient slow circulation |
Programming a variable speed pool pump correctly is essential for balancing energy efficiency, effective filtration, and operational cost savings. By setting appropriate speeds for cleaning and circulation, scheduling run times based on pool usage and environmental conditions, and leveraging advanced features like priming and off-peak operation, pool owners can enjoy cleaner water, quieter operation, and significantly lowered electric bills. Continuous monitoring and adjustment ensure the pump operates at peak performance, protecting the investment and enhancing the pool experience year-round.
Most pumps have 3 to 4 speeds sufficient to cover low-speed filtration, medium circulation, cleaning, and priming needs.
Yes, and it is recommended to run continuously at low speeds to maintain water quality and reduce wear.
Calculate your pool volume and target turnover time, then set RPMs to achieve the calculated flow rates while preserving energy efficiency.
Yes, properly programming your pump can reduce energy costs by up to 80%, saving hundreds of dollars annually.
Check you are properly confirming settings in the controller menu. Consult your manual for troubleshooting or reset procedures.
